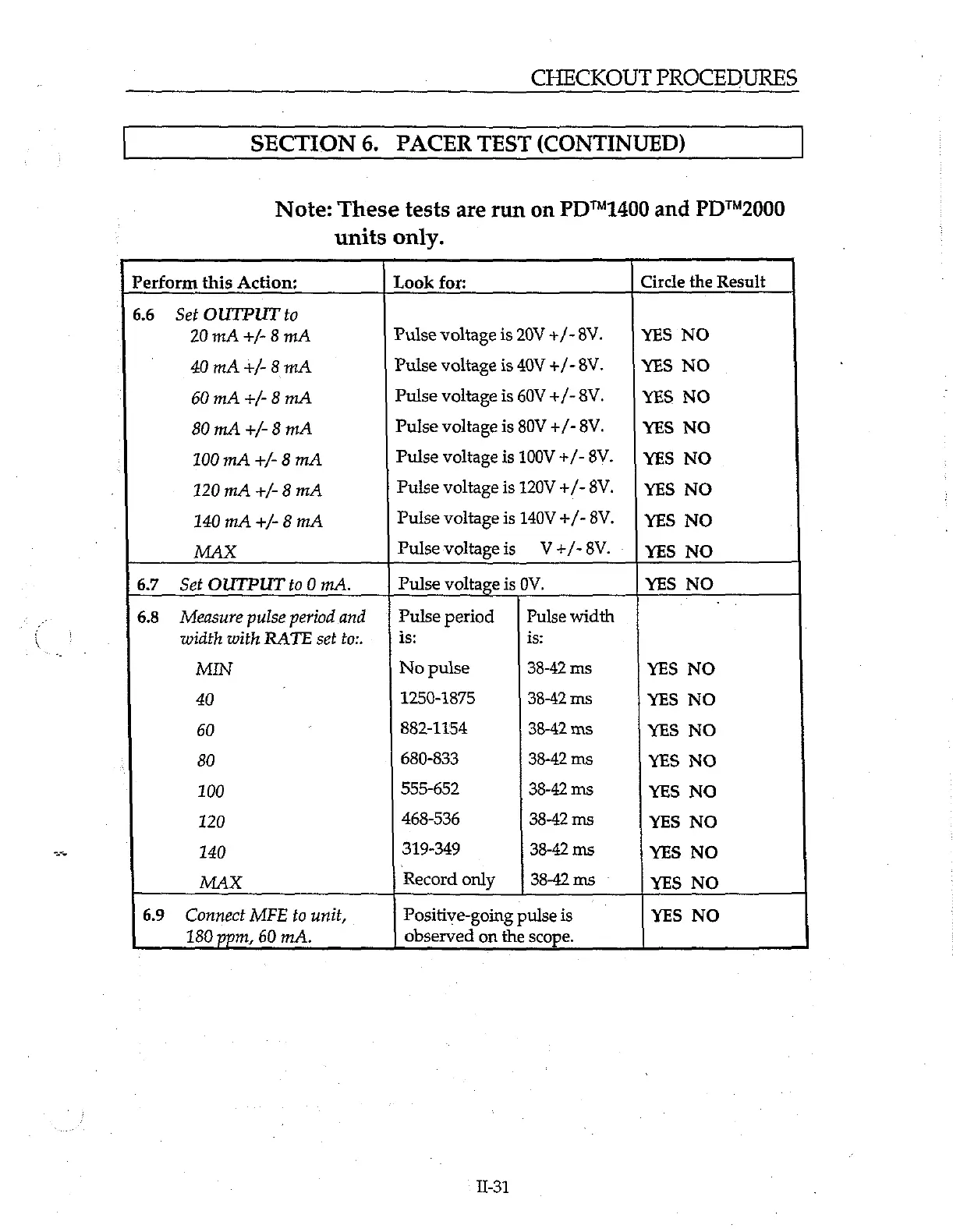

CHECKOUT PROCEDURES
SECTION 6. PACER TEST (CONTINUED)
Note: These tests are run on PD™1400 and PD™2000
units only.
Perform this Action:
Look for: Circle the Result
6.6 Set OUTPUT to
20 mA +/- 8 mA Pulse voltage is 20V +/-8V. YES NO
40 mA +/- 8 mA Pulse voltage is 40V +/-8V. YES NO
60
mA
+/-
8
mA
Pulse
voltage
is
60V
+/-
8V.
YES
NO
80 mA +/- 8 mA Pulse voltage is 80V +/- 8V. YES NO
100
mA
+/-
8
mA
Pulse
voltage
is
100V
+/-8V.
|
YES
NO
120
mA
+/-
8
mA
Pulse
voltage
is
120V
+/-8V.
|
YES
NO
140 mA +/- 8 mA Pulse voltage is 140V +/-8V. | YES NO
MAX Pulse voltageis V+/-8V. YES NO
6.7 Set OUTPUT t0 0 mA. Pulse voltage is OV. YES NO
6.8 Measure pulse period and | Pulse period | Pulse width |
width with RATE set to:. is: is:
MIN No pulse 38-42 ms YES NO
40
1250-1875
38-42
ms
YES
NO
60
882-1154
38-42
ms
YES
NO
80 680-833 38-42 ms YES NO
100
555-652
38-42
ms
YES
NO
120
468-536
38-42
ms
YES
NO
140 319-349 38-42 ms YES NO
MAX Record only 38-42 ms YES NO
6.9 Connect MFE to unit, Positive-going pulse is YES NO
180 ppm, 60 mA. observed on the scope.
1-31
