Zoom GFX-707 User Manual

ZOOM GFX-707

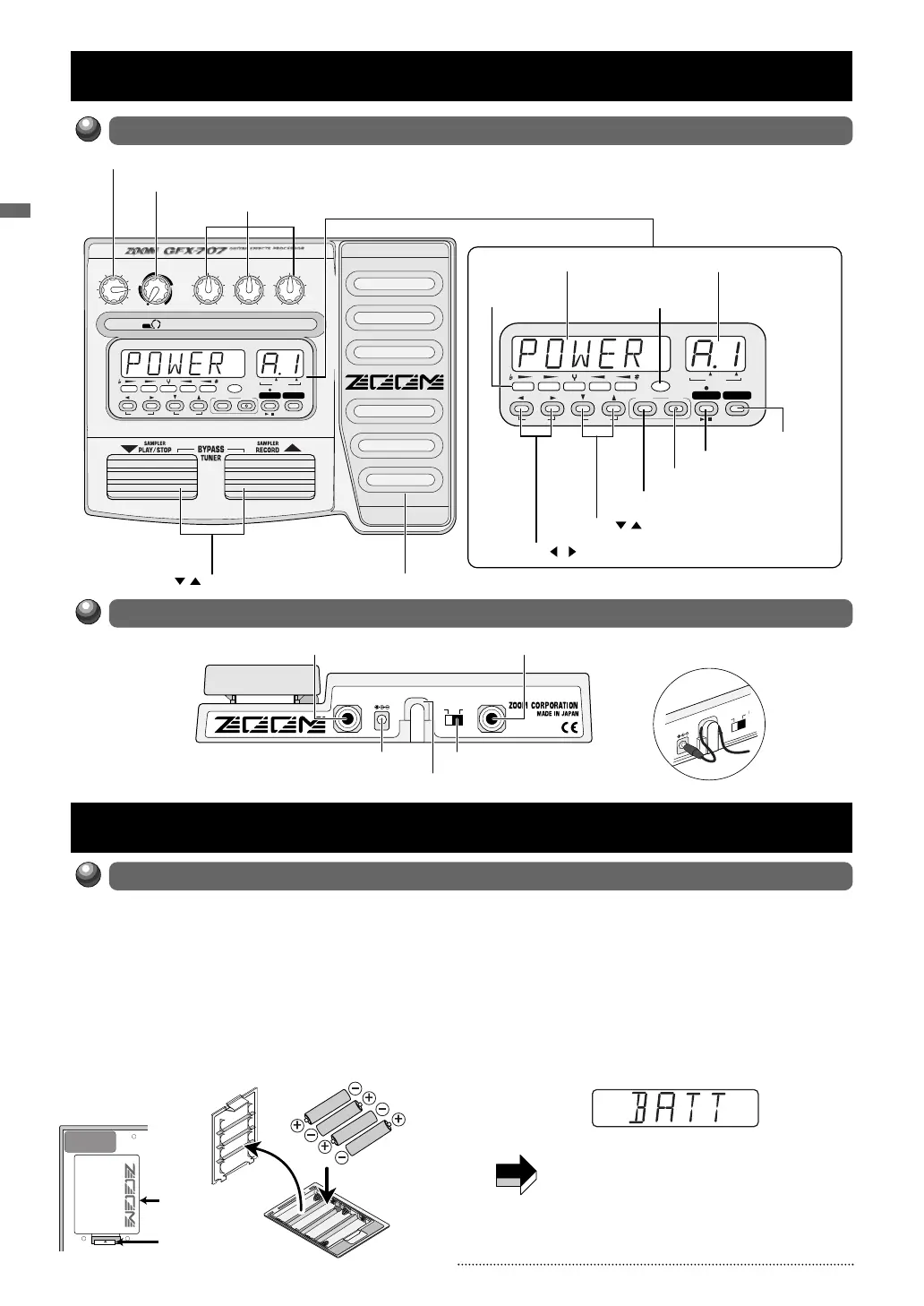

Naming of Parts
Front Panel
4
Naming of Parts /Preparations
STORE
EDIT
(CANCEL) MODULE
(
ON/OFF
)
TYPE (BANK)
COMP-DIST ZNR/EQ MOD REV TOTAL
RHYTHM SAMPLER
(
GROUP
)
OUTPUT AMP SIM COMP•DIST/PARM1 MOD/PARM2 REV/PARM3
PEDAL
OFF
/
PATCH NAME BANK PATCH
(
VALUE
)
BOTH EDITED
STORE
EDIT
(CANCEL) MODULE
(
ON/OFF
)
TYPE (BANK)
COMP-DIST ZNR/EQ MOD REV TOTAL
RHYTHM SAMPLER
(
GROUP
)
PEDAL
/
PATCH NAME BANK PATCH
(
VALUE
)
BOTH EDITED
OUTPUT knob
AMP SIM (simulator) knob
Expression pedal
PARM (Parameter) knob 1 - 3
BANK/PATCH indicator
SAMPLER key
Module LEDs
RHYTHM key
EDIT (CANCEL) key
STORE key
Pedal status LED
Display
MODULE / keys
/ foot switches
TYPE(BANK) / keys
DC9V
POWER
INPUT
(AUX IN)
OUTPUT
(PHONES)
300mA
OFFON
INPUT/AUX IN jack
DC 9V (AC adapter) jack
POWER switch
Cable hook
How to use the cable hook
OUTPUT/PHONES jack
DC9V
POWER
UT
IN)
OU
(PH
300mA
OFFON
Preparations
Rear Panel
Inserting the Batteries
1 Turn the unit over and open the battery
compartment cover.
2 Insert four new IEC R6 (size AA) alkaline
batteries into the battery compartment.
3 Close the battery compartment cover.
If the indication "BATT" appears on the display
during battery-powered operation, the batteries
are exhausted. Replace all four batteries with
fresh ones.
• If the unit is not to be powered from batteries
for an extended period, remove the batteries
from the battery compartment. Otherwise
battery fluid may leak and cause damage to
the unit.
• An AC adapter is not supplied with the unit.
OPEN
Battery
compartment
cover
Adjacent batteries
are inserted with
opposite polarity.
Battery
compartment
cover
Tab
GFX-707 rear
Four IEC R6 (size AA) batteries
PATCH NAME
The GFX-707 can be powered either by alkaline batteries or by an AC adapter. To use the unit
on batteries, insert them as follows.
NOTE

Zoom GFX-707 Specifications

Effect Specifications

effect programs	48 types
effect modules	4 modules + amp simulator + ZNR
sampler function maximum recording time	6 seconds

Memory and Processing

patch memory user	6 banks x 5 = 30
patch memory preset	6 banks x 5 = 30
sampling frequency	31.25 kHz

Conversion and DSP

a/d conversion	20-bit, 64-times oversampling
d/a conversion	20-bit, 128-times oversampling
dsp	ZOOM original ZFx-2

Input and Output

guitar input nominal input level	-20 dBm
guitar input input impedance	470 kilohms
maximum output level	+3 dBm

Display and Power

display	6-position alphanumeric LED display
power supply	9 V DC, center minus, 300 mA
continuous operation	approx. 14 hours with alkaline batteries

Weight and Dimensions

external dimensions	235 mm (W) x 189 mm (D) x 54 mm (H)
weight	740 g
batteries	IEC R6 (size AA) x 4
