Normally, for editing a patch of the GFX-707, you set the unit to edit mode, call up the target
parameter, and change the setting. However, it is possible to use the parameter knobs 1 - 3 in
play mode to change certain effect parameters. This is called "Easy Edit".

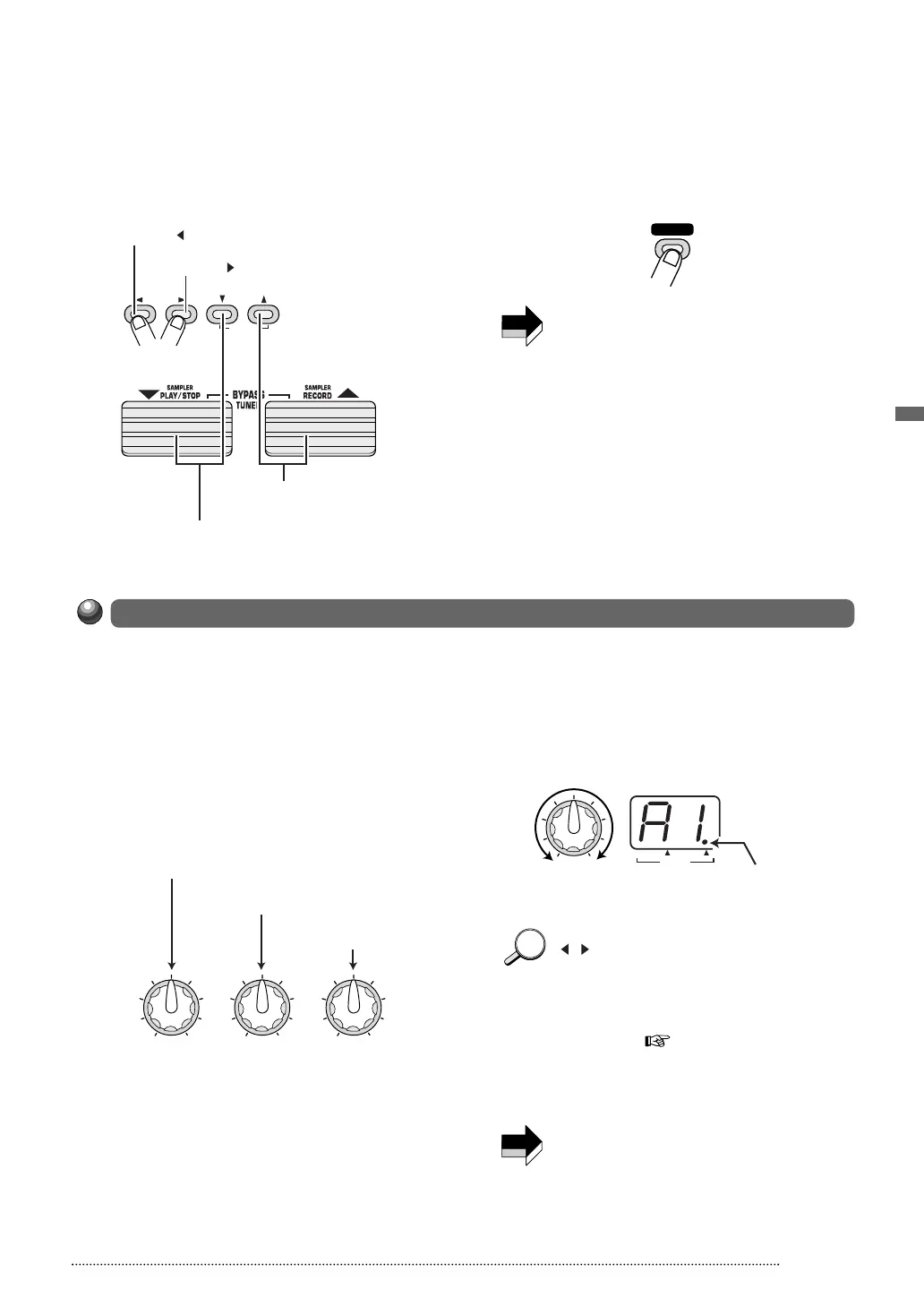

1 To change the sound of a patch in play
mode, turn parameter knobs 1 - 3. The
parameters controlled by the knobs are as
follows.
The actual parameter controlled by the parameter
knob 1 - 3 depends on the patch.
When a knob is turned, the current setting of the
affected parameter is shown on the BANK/PATCH
indicator, and a dot (.) appears at the "EDITED"
position. This indicates that the parameter has
been changed. If the parameter is returned to the
original setting, the dot disappears.
Besides the above parameters, the MODULE
/ keys can be used to change the PATCH
LEVEL parameter.
2 To store an edited patch, carry out the
steps for storing( p. 16).
If another patch is called up without storing the
edited patch, the edited contents will be lost.
The Easy Edit function is not available while
using the rhythm pattern.
Using the Easy Edit Function
13
Listening to Patches (Play Mode Operation)
ZOOM GFX-707
COMP•DIST (compressor•distortion)
module parameter
MOD (modulation)
module parameter
REV (reverb)
module parameter
PARM1 knob PARM2 knob PARM3 knob
BANK PATCH
(
VALUE
)
BOTH EDITED
Shows that parameter
has been changed
recording will terminate automatically after 6
seconds, and playback starts.
7 Use the ▼/▲ foot switches and MODULE
keys to control playback/stop/rewind/fast-
forward.
The controls operate as shown at left. When
using the controls, you can think of the sampler
function as a kind of tape recorder.
8 To turn off the sampler and return to the
play mode, press the SAMPLER key again.
• The sampler function cannot be used at the
same time as the rhythm function or the Jam
Play function.
• While using the sampler function, the MOD
module and REV module included in a patch
cannot be used. (These modules are set to
off, regardless of what the original setting of
the patch is.)
• The recorded contents of the sampler are
automatically erased when the sampler
function is terminated.
NOTE
MODULE
(
ON/OFF
)
TYPE (BANK)
(
GROUP
)
▲ foot switch/TYPE (BANK)▲ key:
start a new recording
▼ foot switch/TYPE (BANK)▼ key:
play/stop
MODULE key: rewind
MODULE key: fast-forward
Pushing both keys
returns to start of sample
SAMPLER
NOTE
HINTHINT

Zoom GFX-707 Specifications

Effect Specifications

effect programs	48 types
effect modules	4 modules + amp simulator + ZNR
sampler function maximum recording time	6 seconds

Memory and Processing

patch memory user	6 banks x 5 = 30
patch memory preset	6 banks x 5 = 30
sampling frequency	31.25 kHz

Conversion and DSP

a/d conversion	20-bit, 64-times oversampling
d/a conversion	20-bit, 128-times oversampling
dsp	ZOOM original ZFx-2

Input and Output

guitar input nominal input level	-20 dBm
guitar input input impedance	470 kilohms
maximum output level	+3 dBm

Display and Power

display	6-position alphanumeric LED display
power supply	9 V DC, center minus, 300 mA
continuous operation	approx. 14 hours with alkaline batteries

Weight and Dimensions

external dimensions	235 mm (W) x 189 mm (D) x 54 mm (H)
weight	740 g
batteries	IEC R6 (size AA) x 4
