Zoom R24 User Manual

17
Audio interface manual
Recording With Cubase LE 5
HINT
WhentheMonitorbuttonislit,theaudiotrackinput
levelwillbedisplayedinthelevelmeternexttothe
fader.When the light isoff,theaudiotrack output
levelwillbedisplayed.
Connect an instrument
6
Connect an instrument such as a
guitar to an R24
INPUT
jack and
choose an effect patch.
The chosen effect patch will be applied to the signal
and recorded on the computer via the USB port.
7

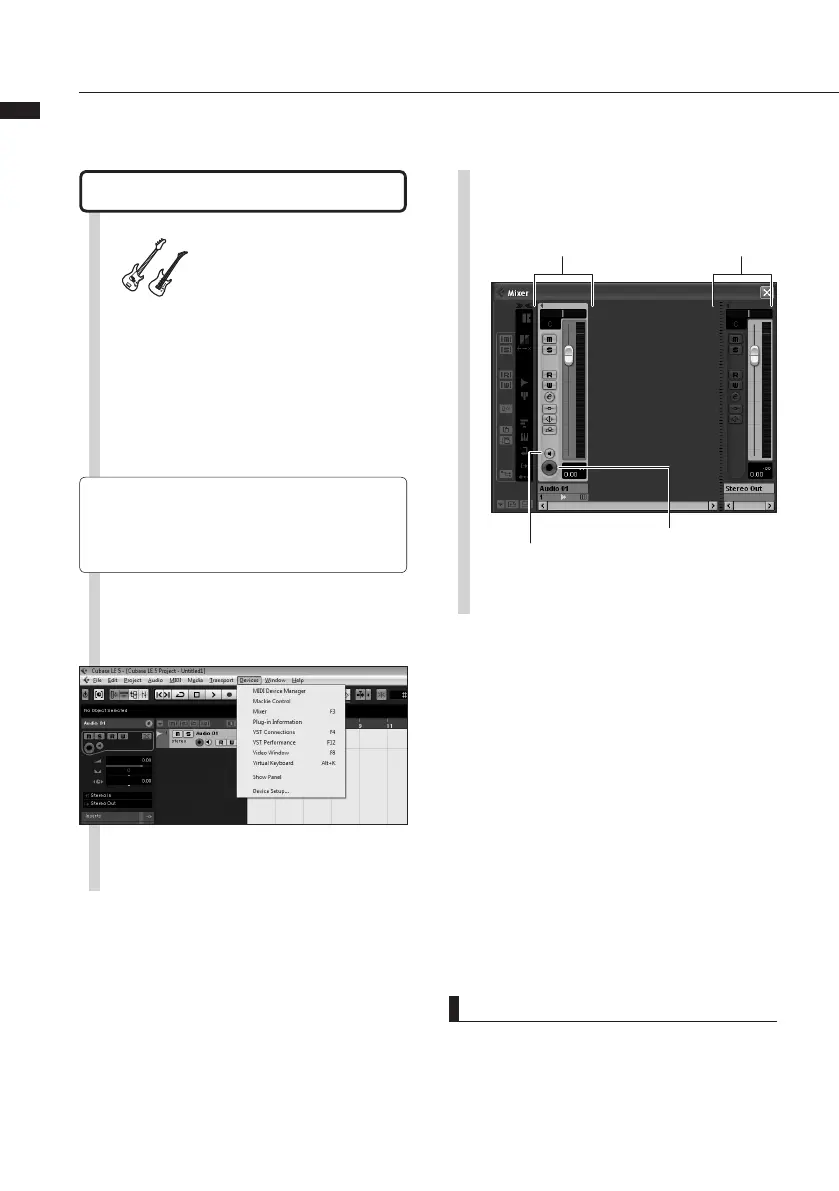

Select “Mixer” from the Cubase LE
5 “Devices” menu.
The mixer window opens, showing the channels
corresponding to the created tracks and the
master channel.
☞
Reference:R24OperationManual
 Selectinganinputsignal
 Selectinganeffectpatch
See the following for information about how to
choose the R24 input signal.
8
Enable the track for recording.
Master Channel
Click the Monitor
button until it lights
orange.
Click the record enable
button. It will light red
and recording will be
enabled.
Channel corresponding
to an audio track

Zoom R24 Specifications

General

Sample rate	96 kHz
Channels quantity	10 channels
Digital sound processing	24 bit
USB 2.0 ports quantity	1
DJ mixer	-
Product color	Silver

Weight and Dimensions

Depth	237.1 mm
Width	376 mm
Height	52.2 mm
Weight	1300 g
