Zoom R24 User Manual

8
Audio interface manual
1
• The audio interface and control surface func-
tions of the R24 can be used by drawing power
through a USB cable from the USB bus.
• We recommend always using the latest R24
system software.
• When using phantom power, we recommend
using batteries or an AC adapter even when the
unit is used as an audio interface.

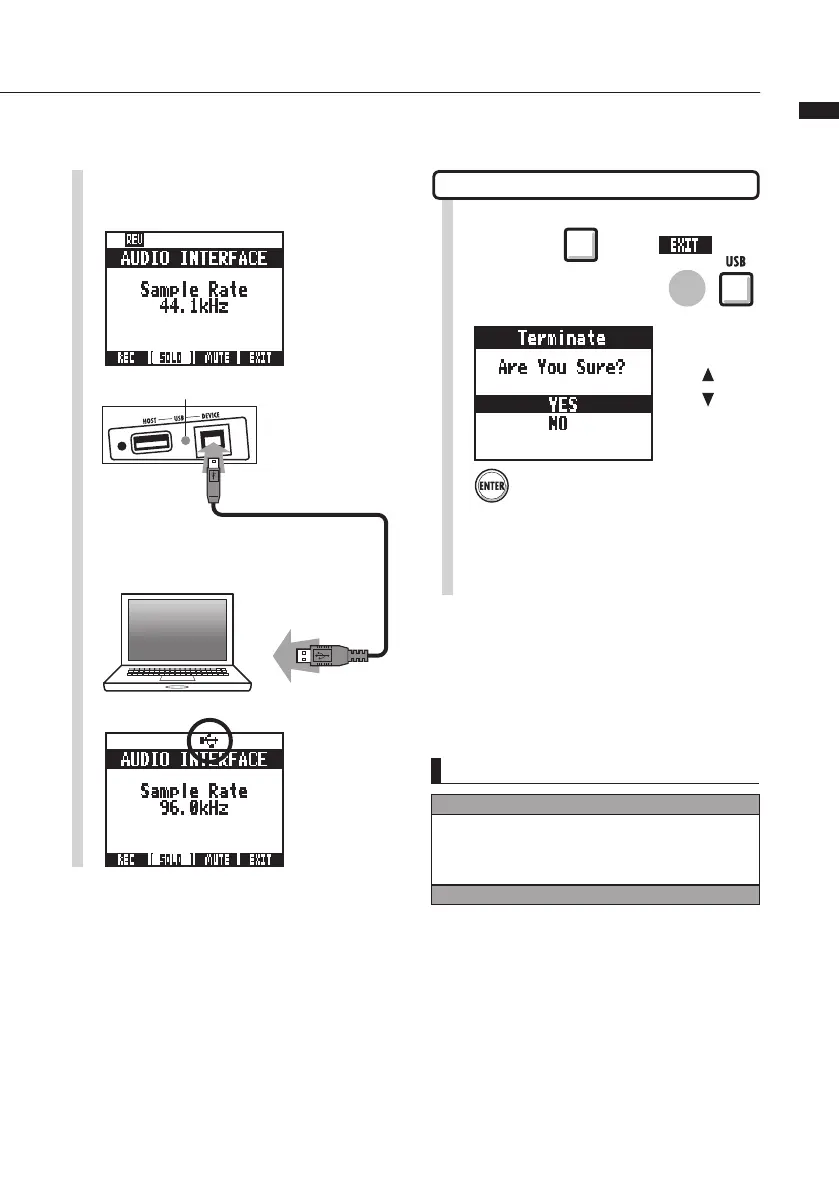

Press the below
Press
ENTER
.
Select
YES
.
2
Disconnect the USB cable
3
USB DEVICE indicator lights
Connect the USB cable to the R24.
4
Connect the USB cable to the
computer.
5
USB icon appears when connection completes.
NOTE
Disconnecting
Select CONTINUE to use the same settings as last time.
•INSERTEFFECTsettings
•SENDRETURNEFFECTsettings
•Mixersettings
•TUNERsettings
Select RESET to restore default settings for each item.
Change
menu
or
.

Zoom R24 Specifications

General

Sample rate	96 kHz
Channels quantity	10 channels
Digital sound processing	24 bit
USB 2.0 ports quantity	1
DJ mixer	-
Product color	Silver

Weight and Dimensions

Depth	237.1 mm
Width	376 mm
Height	52.2 mm
Weight	1300 g
