07 - 28 RT60 Rough Terrain Crane
7. 16 SWING OPERATION
SWING GEAR
The swing gear, which can realize 360° full-range swing operation, consists of hydraulic
motor, planetary gear reducer, swing cushion valve, drive gear, swing bearing and swing
lockout device, etc.

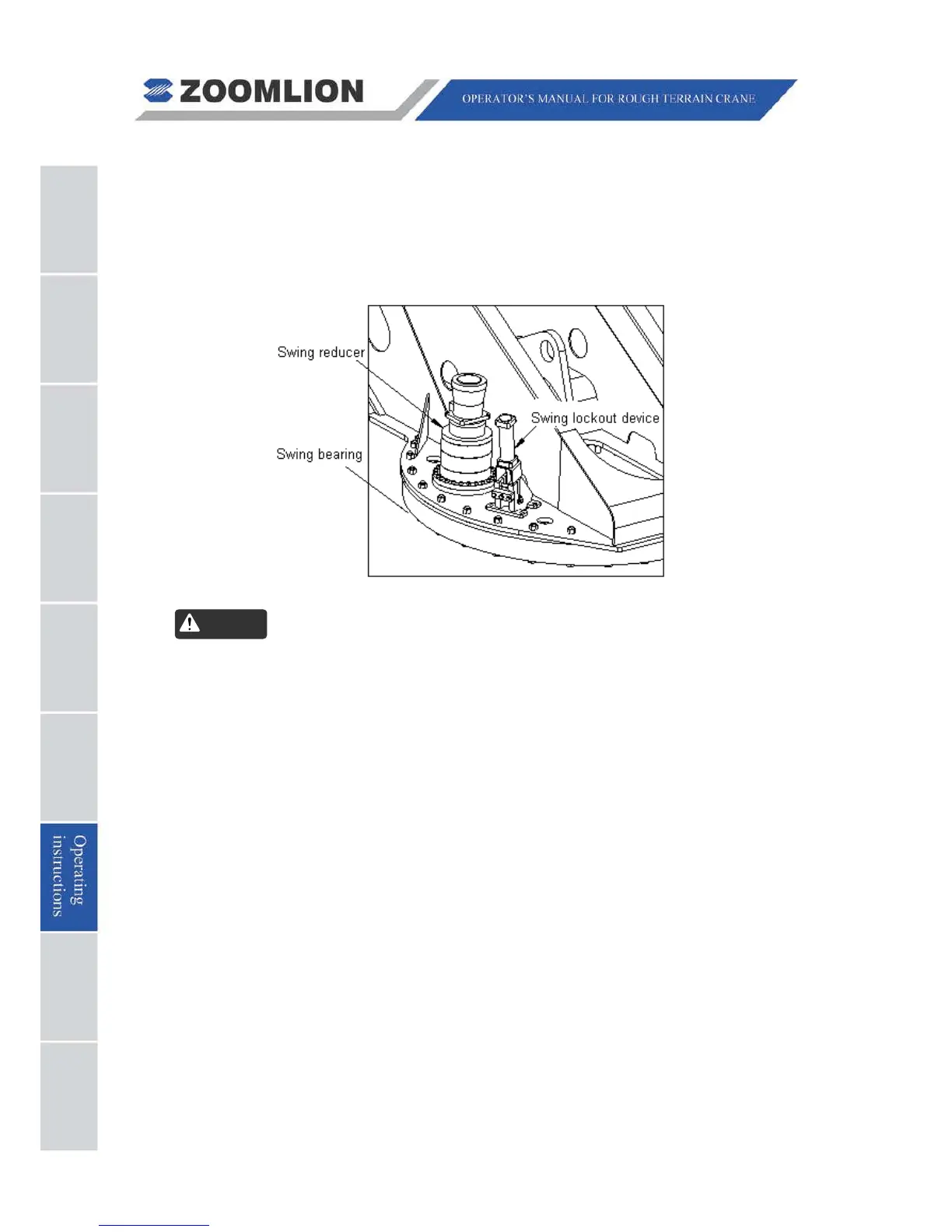

Fig. 07 - 23
Operator’s rear and side vision field is greatly restricted during swing operation.
Therefore, operate the crane with maximum care and ensure that there are no
obstacles / persons in the swing radius. Send out a short warning signal (horn)
before crane operation. The swing radius of crane tail is 3780 mm.
