RT60 Rough Terrain Crane 07 - 37
7. 18 JIB OPERATION
This crane is equipped with a 2-section jib. Jib section I is in lattice structure and jib
section II is in box-shaped structure. The jibs can be carried on the main boom when the
crane is in the travel position or while the jib is not required. The jibs is then folded
alongside the main boom locked in the right side position.
Before lifting load with jib, set up the outriggers.
ASSEMBLY
The jib can be assembled below an angle of 0, 20 or 40 to the telescopic boom
according to working requirements. Take out the auxiliary hook from the hook holder
before assembling the jib. See the following figure.

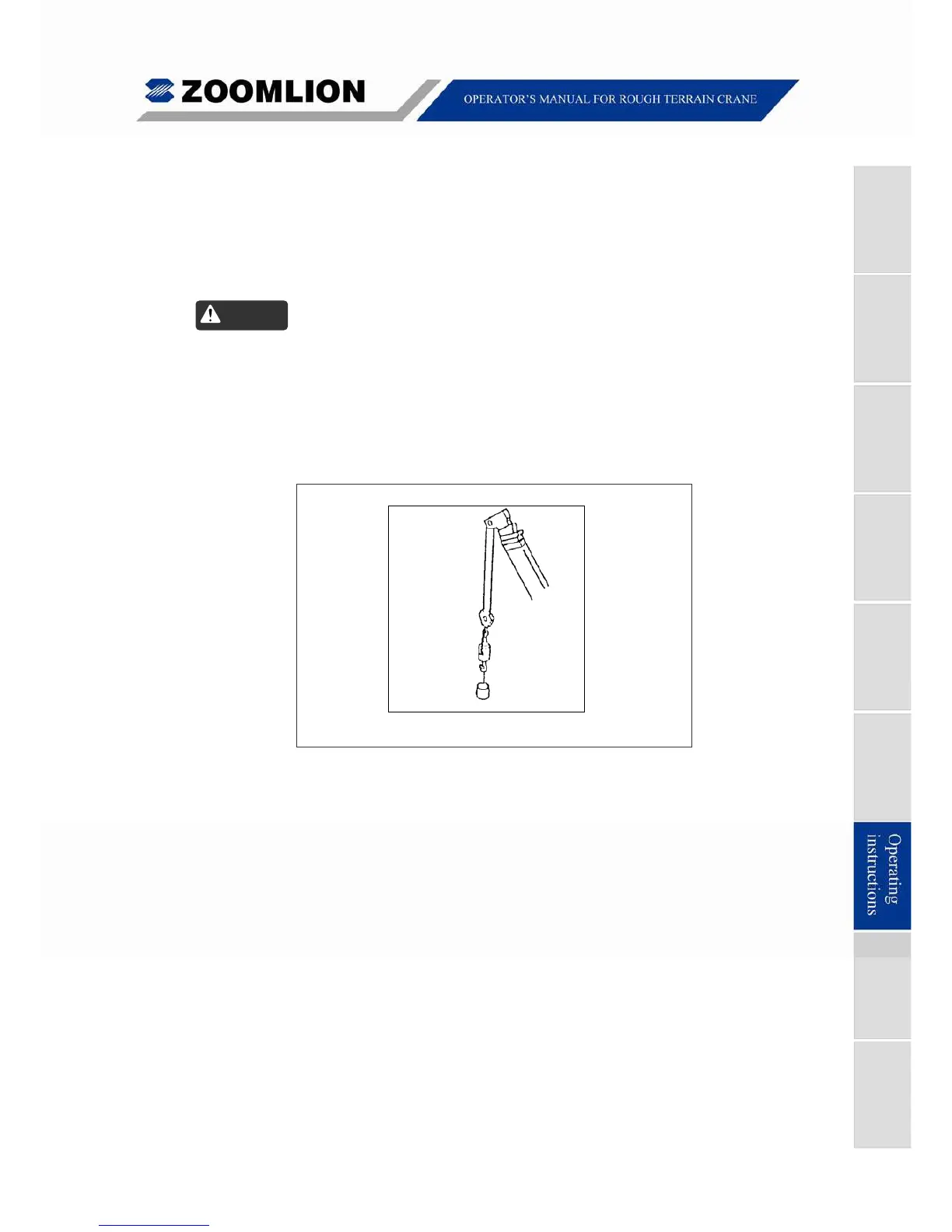

Fig. 07 – 35
