RT60 Rough Terrain Crane 07 - 45
7. 19 ROOSTER SHEAVE
The rooster sheave is composed of the bracket, sheave spindle, sheave 1 and pins. It is
possible to fold the rooster sheave on the side in transport position and not used position.

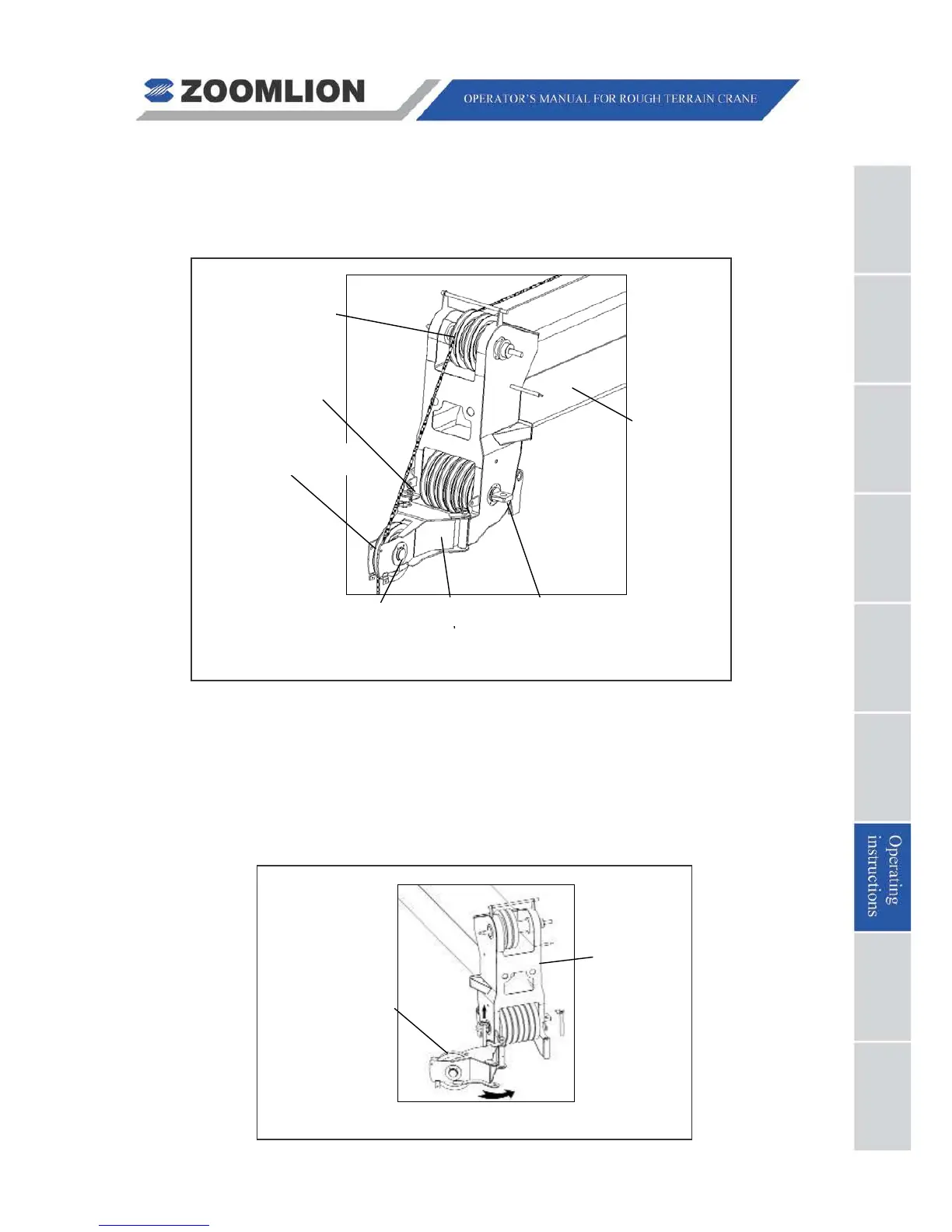

Fig. 07 – 50
Use of this rooster sheave saves the time of hoist when lifting small load (≤ 5.5 Ton) with
auxiliary hook, thus to improve the working efficiency.
ASSEMBLY
a) Swing the boom to the side or rear working area and luff the boom down to -3°
position;
b) Remove the securing pin and swing the bracket forwards until the connecting pin can
be pinned;
Fig. 07 – 51
