07 - 46 RT60 Rough Terrain Crane
c) Auxiliary hoist rope from auxiliary winch must be laid over the upper rope guides and
fed on the main boom head over sheave 3 (see Fig. 07-53) and over sheave 1 (see
Fig. 07-53) of the rooster sheave. Mount the auxiliary hook and anti-two block switch.
Ensure that the anti-two block switch functions correctly and all assembly connections
are reliable.
REMOVAL
Proceed analogously, in the reverse order.

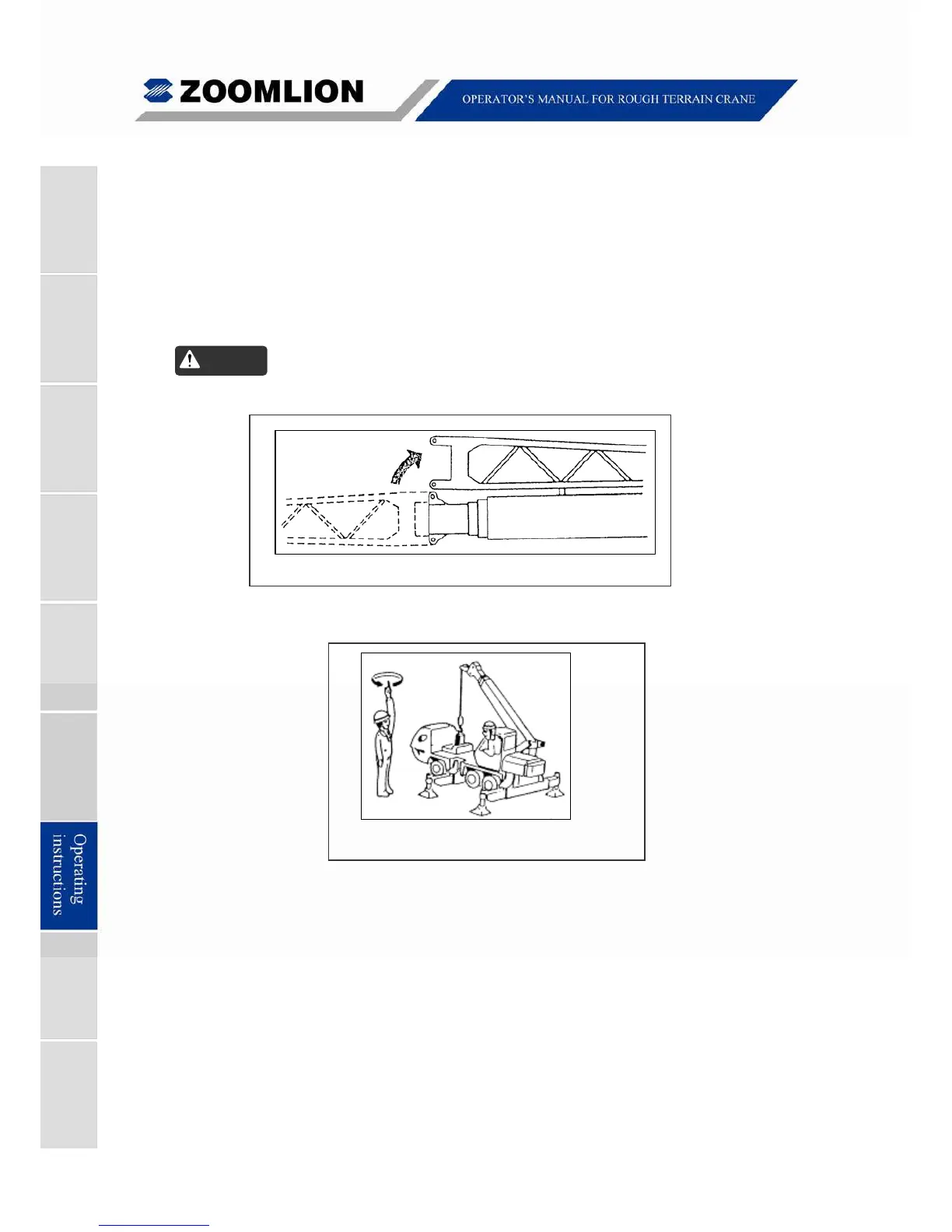

(1) Fold the jib before operating with the rooster sheave;
Fig. 07 – 52
(2) Remove and store the auxiliary hook according to the conductor’s hand
signals.
Fig. 07 – 53
Caution
