RT60 Rough Terrain Crane 07 - 13
7. 13 HOIST OPERATION
The hoist gear consists of the hydraulic motor, winch reducer, brake, rope guider, anti-two
block system, 3
rd
The hoist gear includes two parts: main winch and auxiliary winch.
wrap, hoist rope and main / auxiliary hooks and so on.
The joysticks controlling the main / auxiliary winches are installed in the cab. The joystick
controlling main winch is on the right side of the seat (namely right joystick); the joystick
controlling auxiliary winch is on the left side of the seat (namely left joystick). See the
following figure.
Please read the Load Rating Chart and the Lifting Height Chart before carrying out hoist
movements.

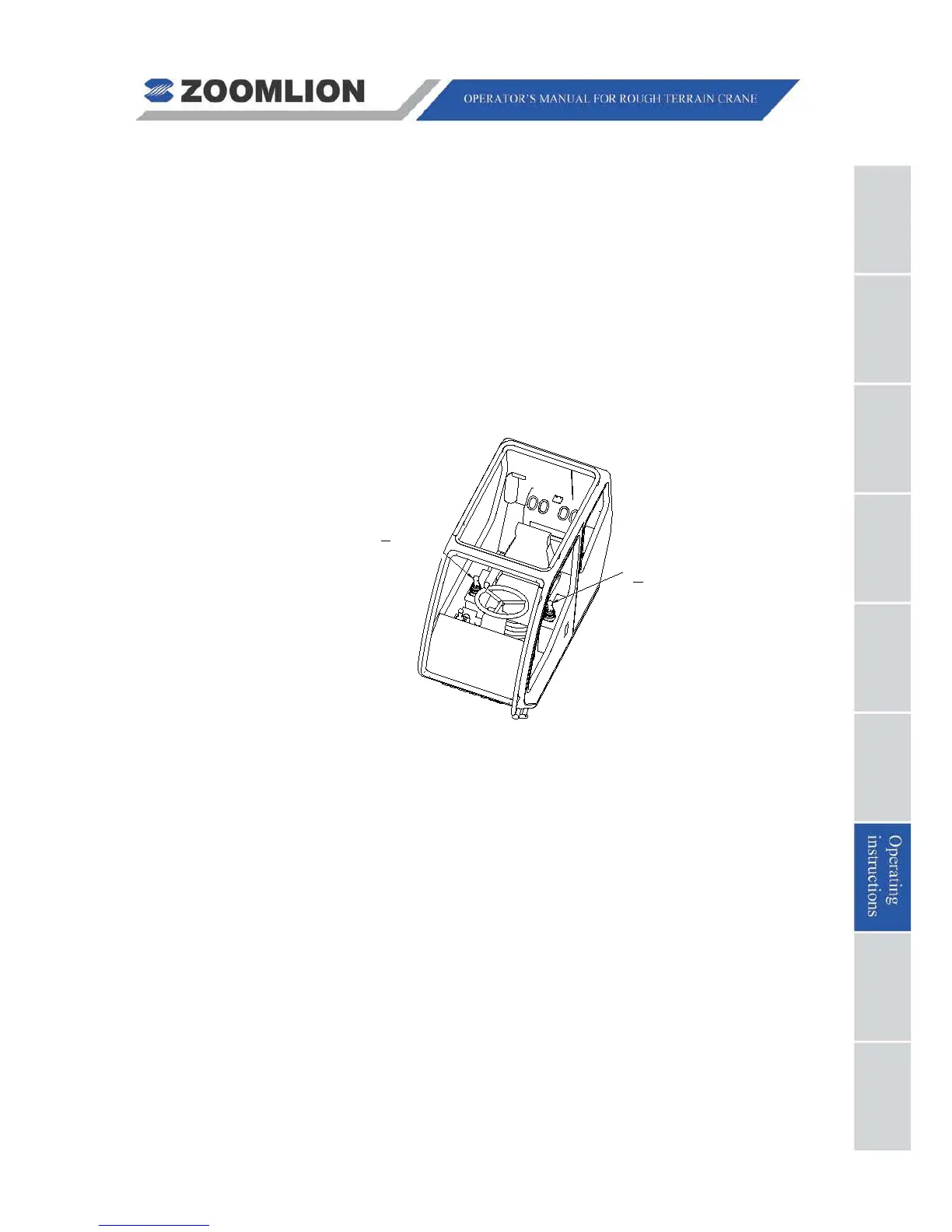

Fig. 07 - 5
