RT60 Rough Terrain Crane 06 - 16
6.3 Monitor

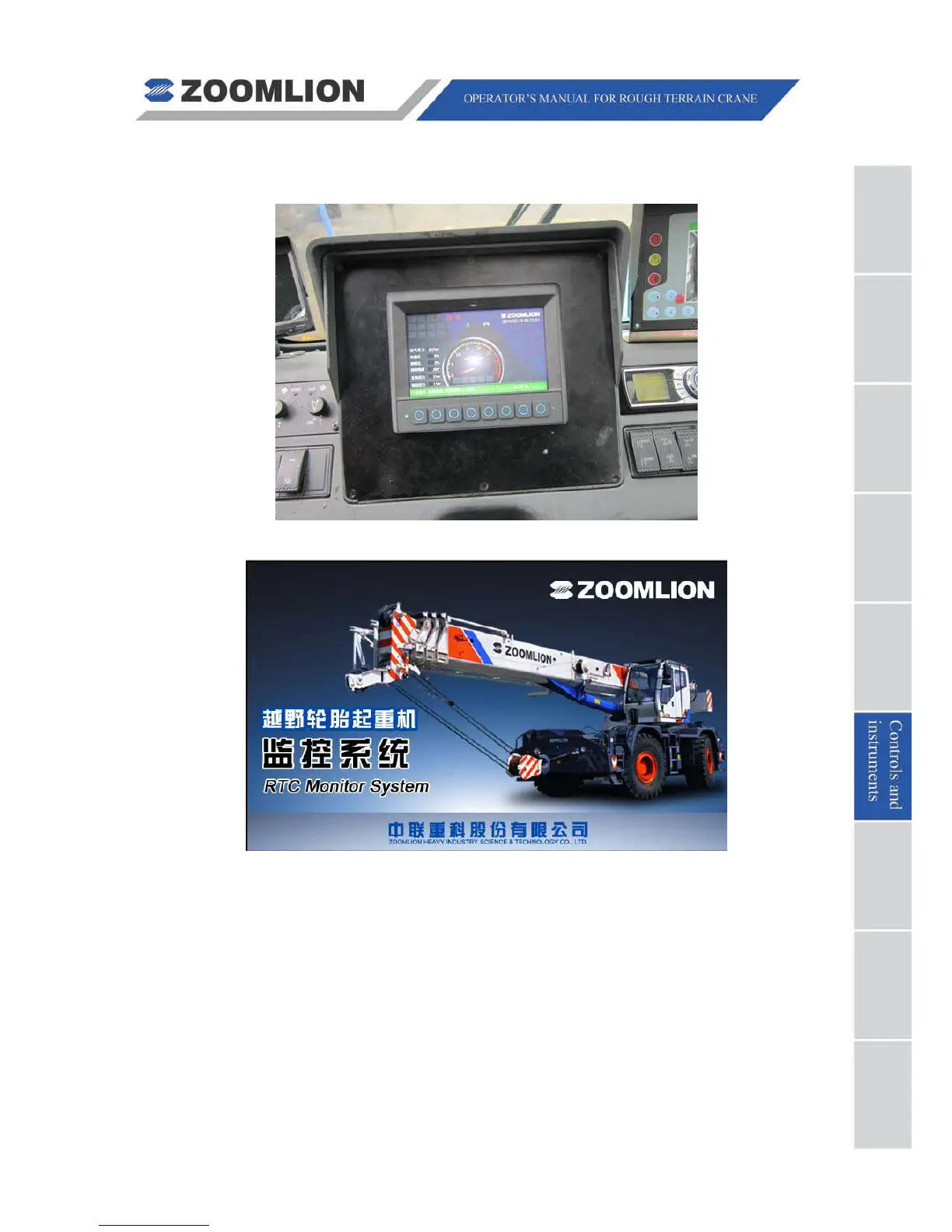

Figure 06 – 11 Overview
Figure 06 – 12 System Start-up
After being switched on:
a) The monitor system runs up. See Figure 06 – 12.
b) The Work Mode Screen (when the parking brake is ON) or Travel Mode Screen (when
the parking brake is OFF) appears on the monitor. See Figures 06 – 13 and 06 – 14
respectively.
