06 - 17 RT60 Rough Terrain Crane

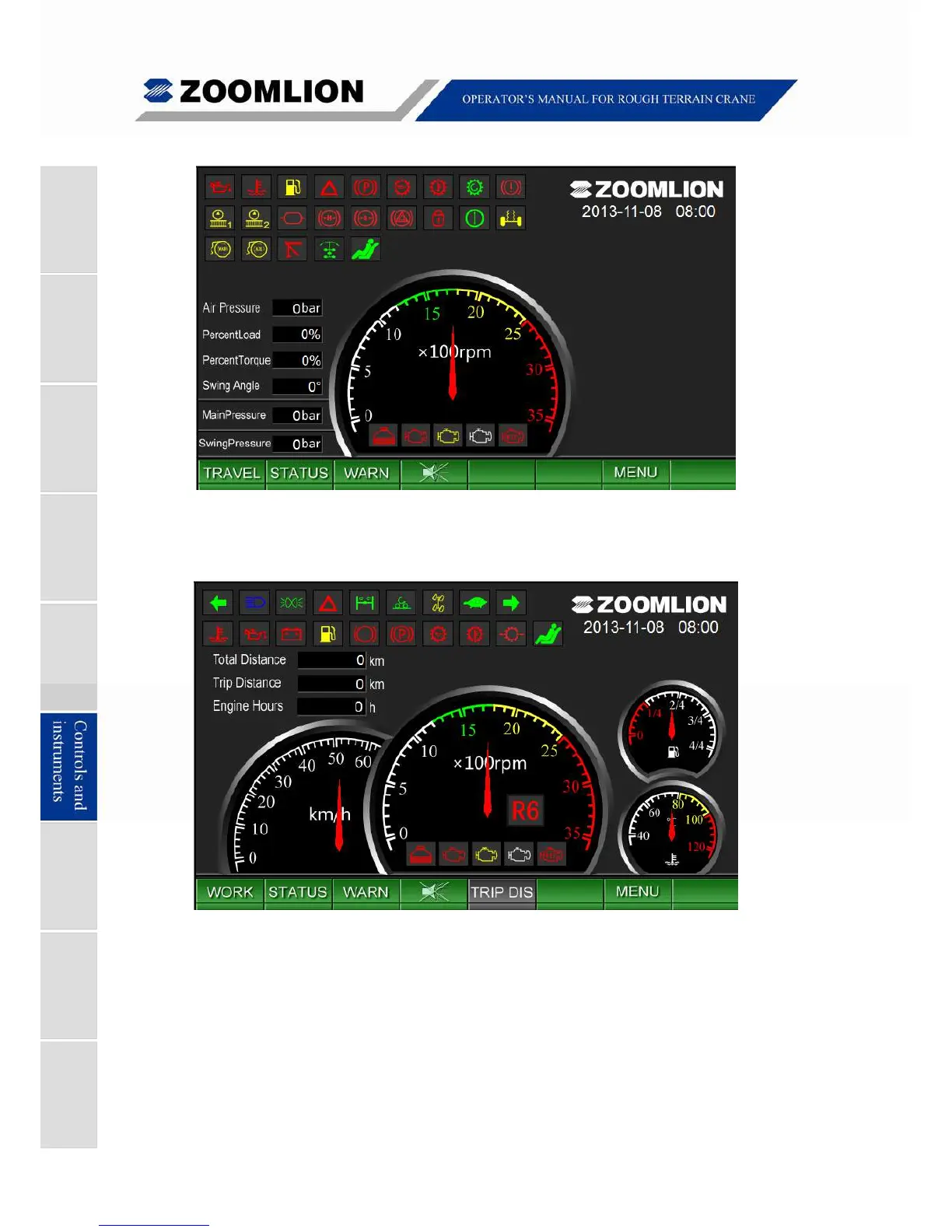

Figure 06 – 13 Work Mode
Under Work Mode Screen, the virtual tachometer will be displayed on the screen. See
Table 06 – 2.
Figure 06 – 14 Travel Mode
Trip Distance is the crane travel distance from the departure place to the destination.
Press the function key “TRIP DIS” to begin to record the travel distance. At this time, the
key turns to grey. Press the key again to finish the travel distance recording and the key
turns to green.
Under Travel Mode Screen, the virtual gauges such as odometer, tachometer, fuel gauge
and engine coolant temperature gauge will be displayed on the screen. See Table 06 – 2.
Under any screen, the function keys at the bottom are available for switching between
various screens.
