RT60 Rough Terrain Crane 06 - 6
6.1.1 AIR CONDITIONER CONTROL PANEL

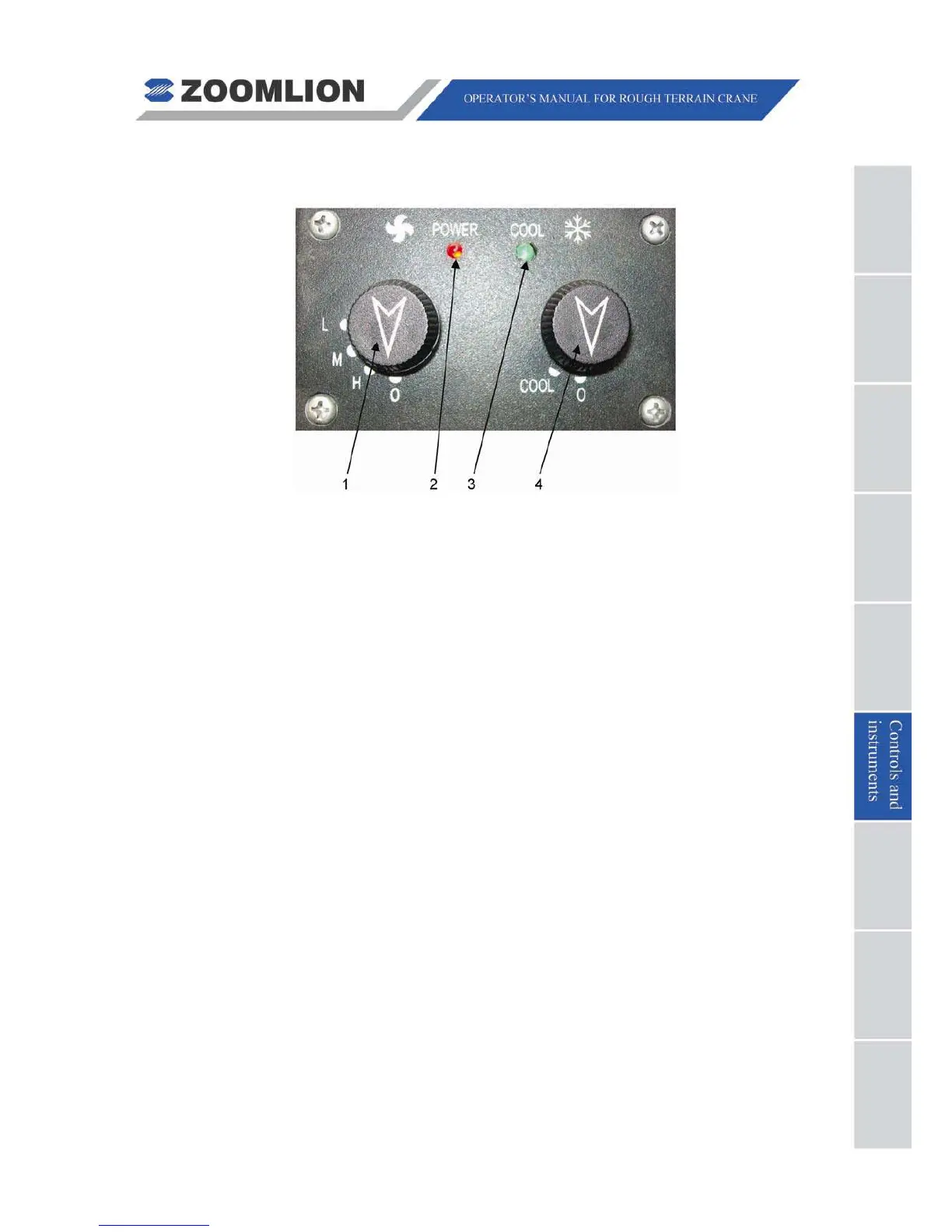

Figure 06 – 4 Air Conditioner Control Panel
FUNCTIONS
1. A/C FAN SPEED / MASTER SWITCH – Used to control the fan blower modes: OFF,
HI, MID, LOW.
2. FAN POWER INDICATOR
3. COOL MODE INDICATOR
4. CAB COOLER POWER SWITCH – Refrigeration ON / OFF. Starts or stops the
function of the compressor.
