06 - 5 RT60 Rough Terrain Crane
1 2 3 4 5

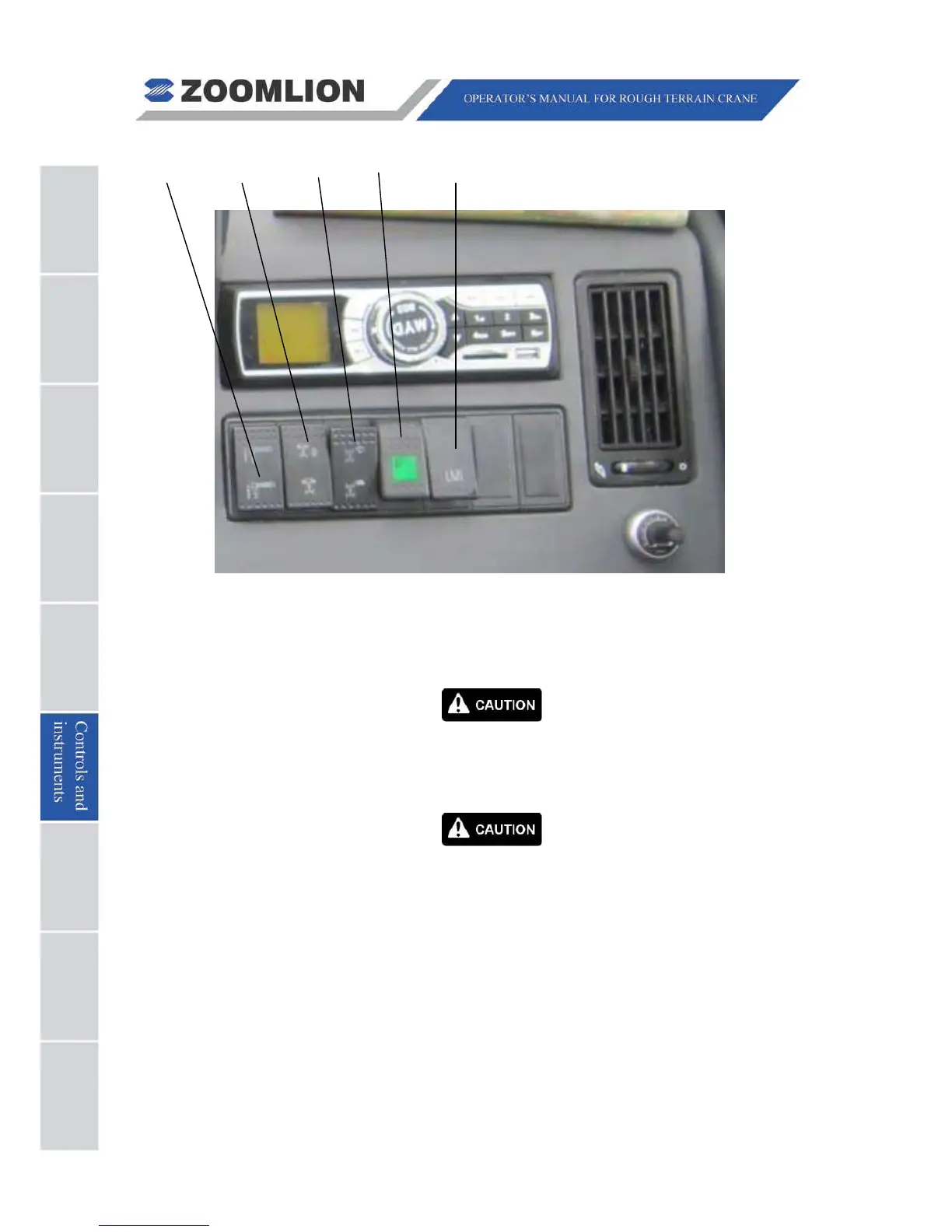

Figure 06 – 3 Right Dash
1. OUTRIGGER EXTEND / RETRACT MASTER SWITCH – Used with switches (12, 13,
15, 16 in Figure 06 1) to extend and retract the outrigger beams and jacks. Push
down to retract, up to extend.
You must set the swing lock switch to LOCK, when the boom is in the
travel position.
2. SWING LOCK SWITCH - Push down to disengage swing lock, up to engage.
Do not use this switch until you stop the crane.
3. 2-WHEEL / 4-WHEEL DRIVE SWITCH Push up to engage 2-wheel drive, down to
engage 4-wheel drive.
4. HAND / FOOT THROTTLE SELECT SWITCH - Push up to select foot throttle, down
to select hand throttle.
5. BYPASS SWITCH Push down to bypass the switch-off when the RCI sounds the
alarm and switches off the movements. (BYPASS SWITCH not used with Greer LMI
system.)
