10. BOOM HOIST / MAIN WINCH CONTROL - Move the joystick forward to reel-off main
winch rope. Move the joystick rearward to spool-up main winch rope. Move the
joystick left to lift the boom. Move the joystick right to lower the boom.
Horn – Push and hold-in to make a sound. (Located on left side of joystick).
Free swing – Push to operate the FREE SWING. Push again to release this function.
(Located on right side of joystick)
Free
Swing

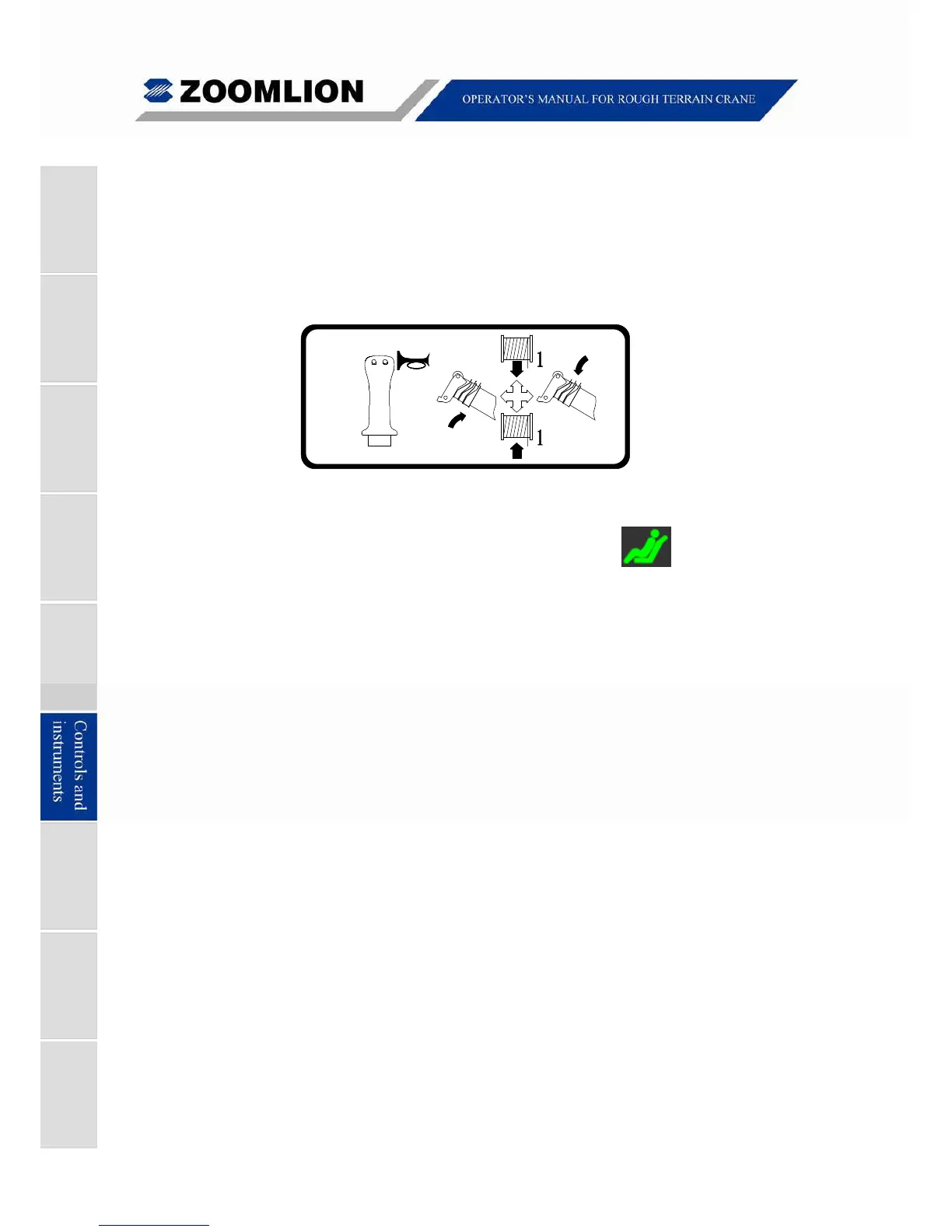

Figure 06 – 10 Right Joystick (Boom Hoist / Main Winch Control)
Note
Only when the operator’s seat is
occupied and the icon on the
display lights up, the joysticks can initiate various movements.
