07 - 38 RT60 Rough Terrain Crane

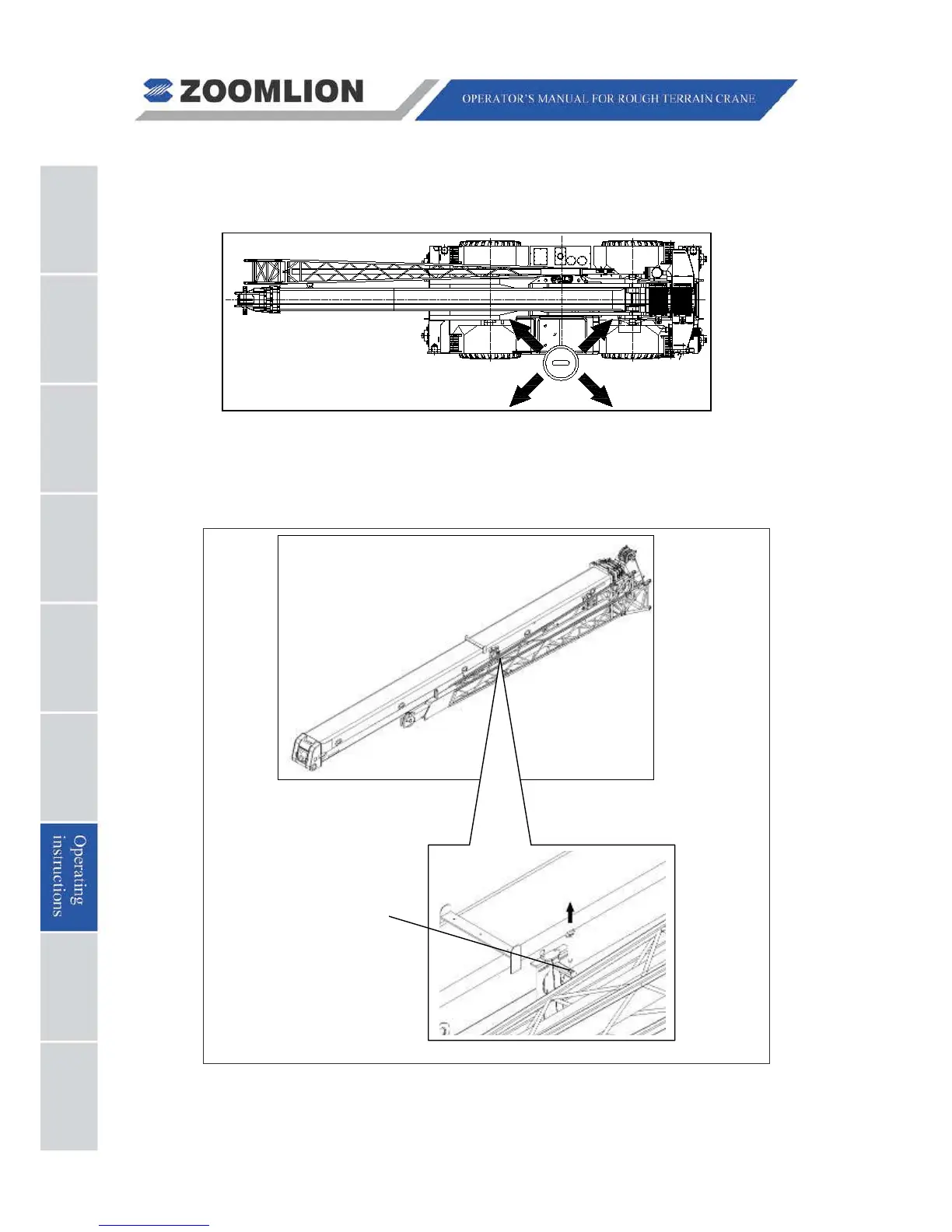

Assembly of the jib below an angle of 0°:
a) Extend the outriggers and level the crane;
Fig. 07 – 36
b) Completely retract the boom and luff it down to the front in -3° position. Ensure there is
40 m swing space from the swing center;
c) Remove the pin I at point A;
Fig. 07 – 37
