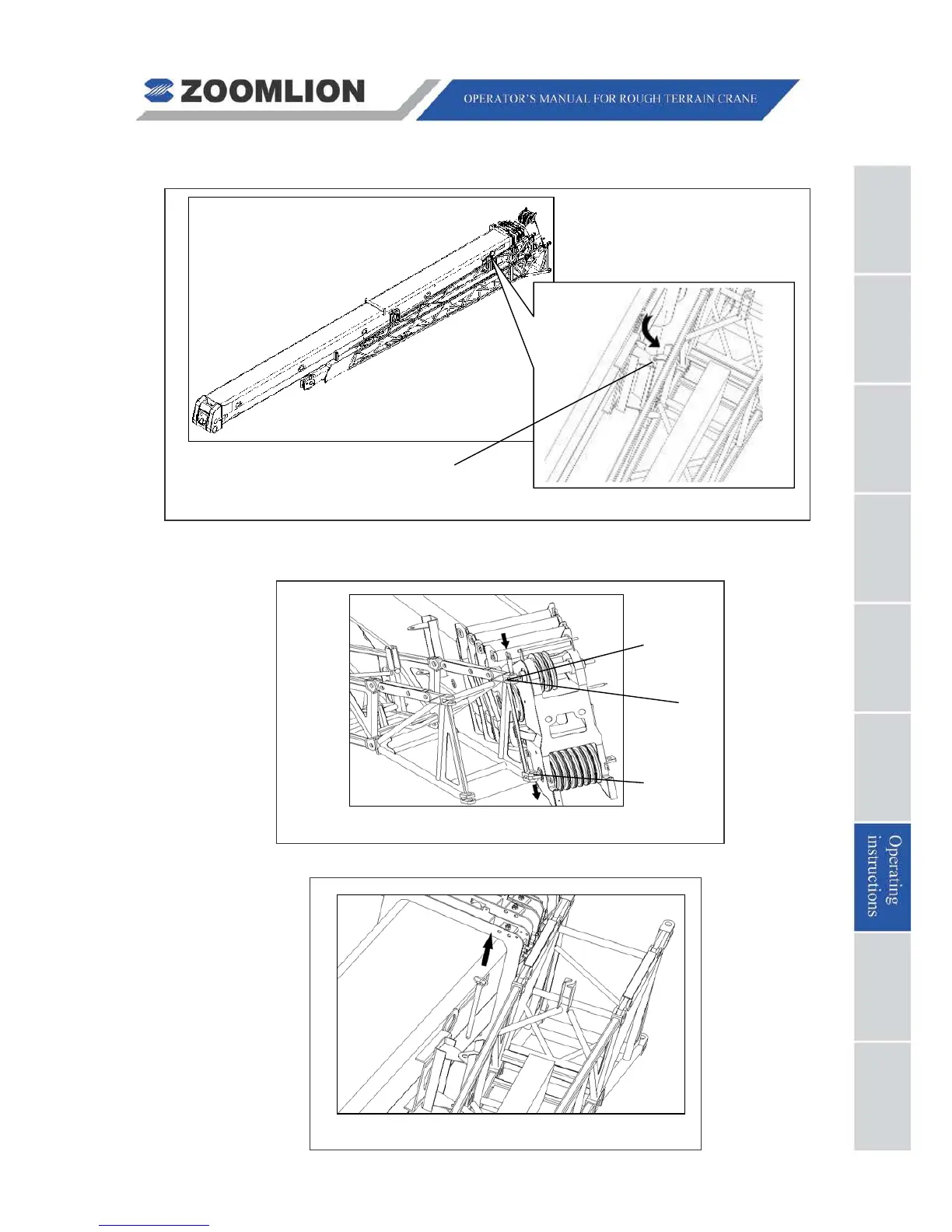

RT60 Rough Terrain Crane 07 - 39
d) Rotate the jib around the lateral center of pin II;
Fig. 07 – 38
e) Connect the jib to the boom head axles at fixing points B and C by inserting pin III and
guarding with spring-loaded pin;
Fig. 07 – 39
f) Remove the pin II at the lateral rotation point A;
Fig. 07 – 40
Pin II
Pin III
Point B
Point C
