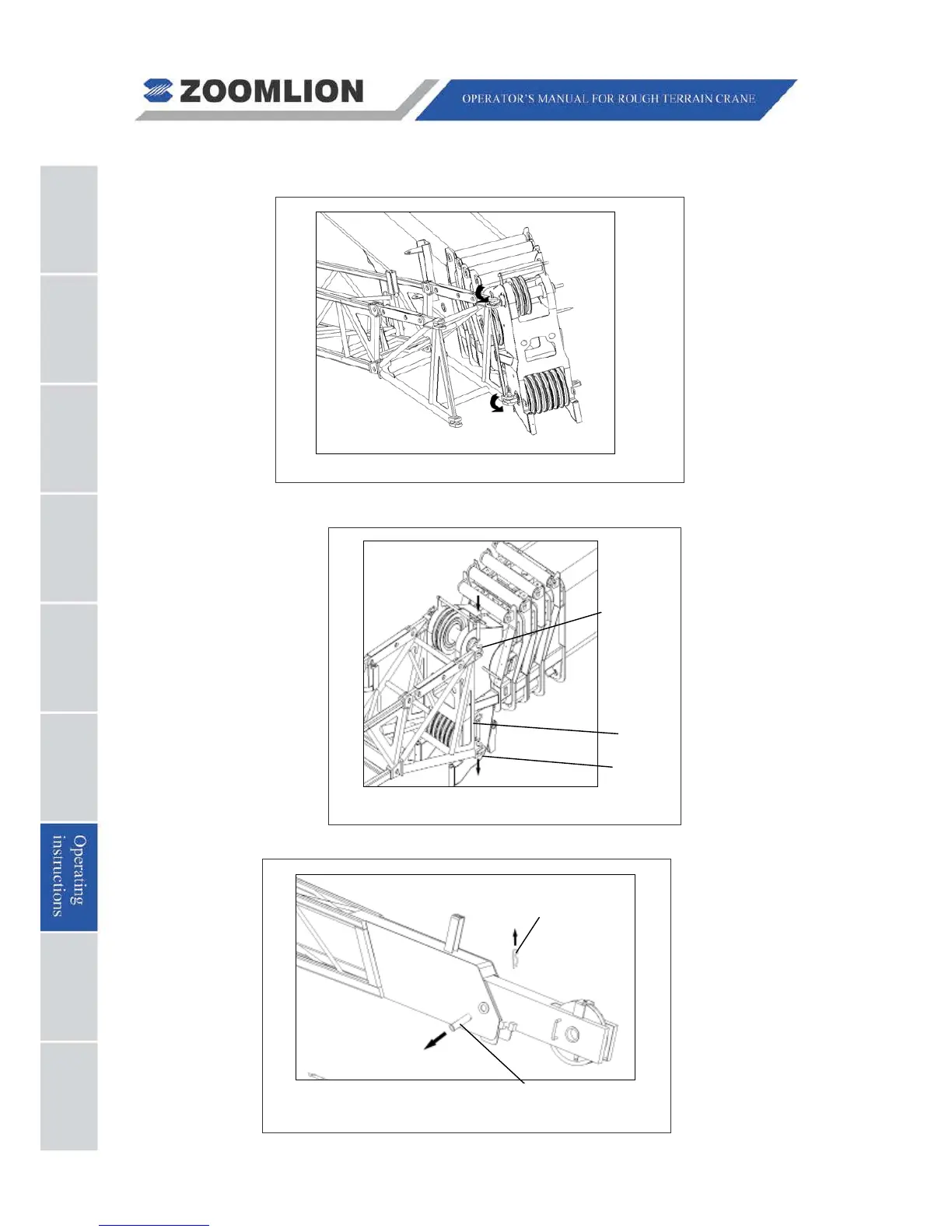

07 - 40 RT60 Rough Terrain Crane
g) Swing the jib forwards;
Fig. 07 – 41
h) Connect at points D and E by inserting pin IV and guarding with load-spring pins;
Fig. 07 – 42
i) Remove pin V and spring-loaded pin before using jib section II;
Fig. 07 – 43
Pin IV
Pin V
Spring-loaded pin
Point D
Point E
