Zoomlion RT60 User Manual

06 - 21 RT60 Rough Terrain Crane

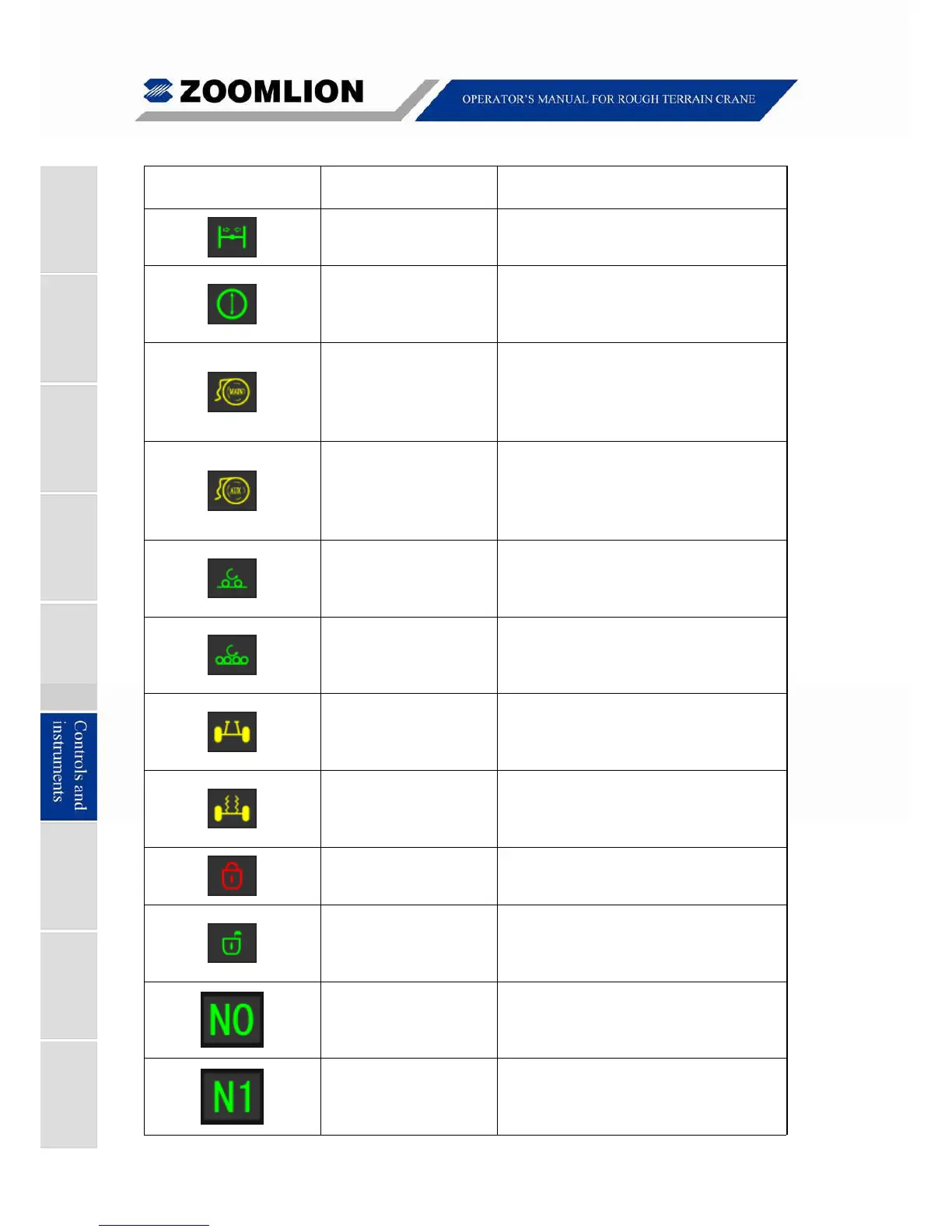

INDICATOR SYMBOL DESCRIPTION FUNCTION
AXLE CENTERED
INDICATOR
Illuminates:
Shows that the rear axle is centered.
SUPERSTRUCTURE
POSITION INDICATOR
Illuminates:
Shows that the superstructure is in the
initial position.
MAIN WINCH
APPROACHING
LOWER LIMIT
INDICATOR
Illuminates:
Shows that the main winch is near the
minimum wire rope wrap limit (3 turns on
the drum).
AUXILIARY WINCH
APPROACHING
LOWER LIMIT
INDICATOR
Illuminates:
Shows that the auxiliary winch is near
the minimum wire rope wrap limit (3
turns on the drum).
2-WHEEL DRIVE
INDICATOR
Illuminates:
Shows that the crane is in the
2-wheel-drive mode.
4-WHEEL DRIVE
INDICATOR
Illuminates:
Shows that the crane is in the
4-wheel-drive mode.
AXLE SUSPENSION
LOCKED INDICATOR
Illuminates:
Shows that the axle suspension is
locked.
AXLE SUSPENSION
SET TO SPRUNG
INDICATOR
Illuminates:
Shows that the axle suspension is not in
the locked position.
SWING LOCK
INDICATOR
Illuminates:
Shows that the swing lock is engaged.
SWING UNLOCK
INDICATOR
Illuminates:
Shows that the swing lock is NOT
engaged.
NEUTRAL 0
POSITION INDICATOR
Illuminates:
Shows that the transmission is in the
"N0" position.
NEUTRAL 1
POSITION INDICATOR
Illuminates:
Shows that the transmission is in the "N
1" position.
