RT60 Rough Terrain Crane 06 - 32
6.3.3.5 Maintenance
The Maintenance Screen is shown as following. See Figure 6 – 27.
In the Maintenance Screen, move the cursor left / right and press the key “ENTER” to
select the items such as Engine Diagnostic, Error Diagnostic or GPS Temporary Unlock
according to the work requirements.
Press the keys “BACK” or “MENU” to return to the Main Menu Screen. Press the key
“HOME" to enter the Travel Mode Screen.

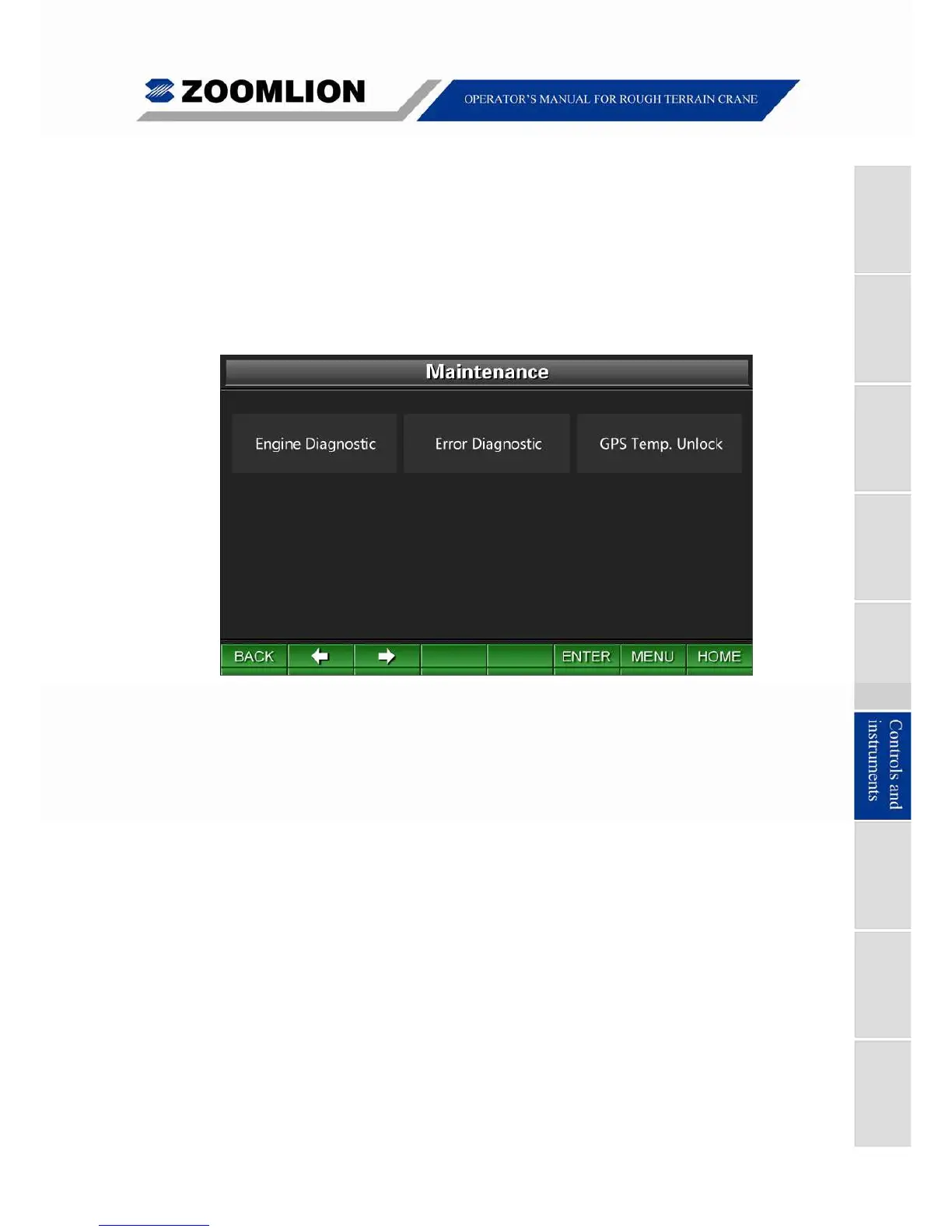

Figure 06 – 27 Maintenance
(1) Engine Diagnostic: move the cursor to select the icon “Engine diagnostic” and press
the key “ENTER” to enter the Engine Diagnostic Screen. See Figure 06 – 28.
Press the function key “DIAG” and press the keys “PgUp” and “PgDn” to increase and
decrease the engine idle speed by 50 rpm. The engine idle speed varies within 650 –
1200 rpm.
