2 Product Overview

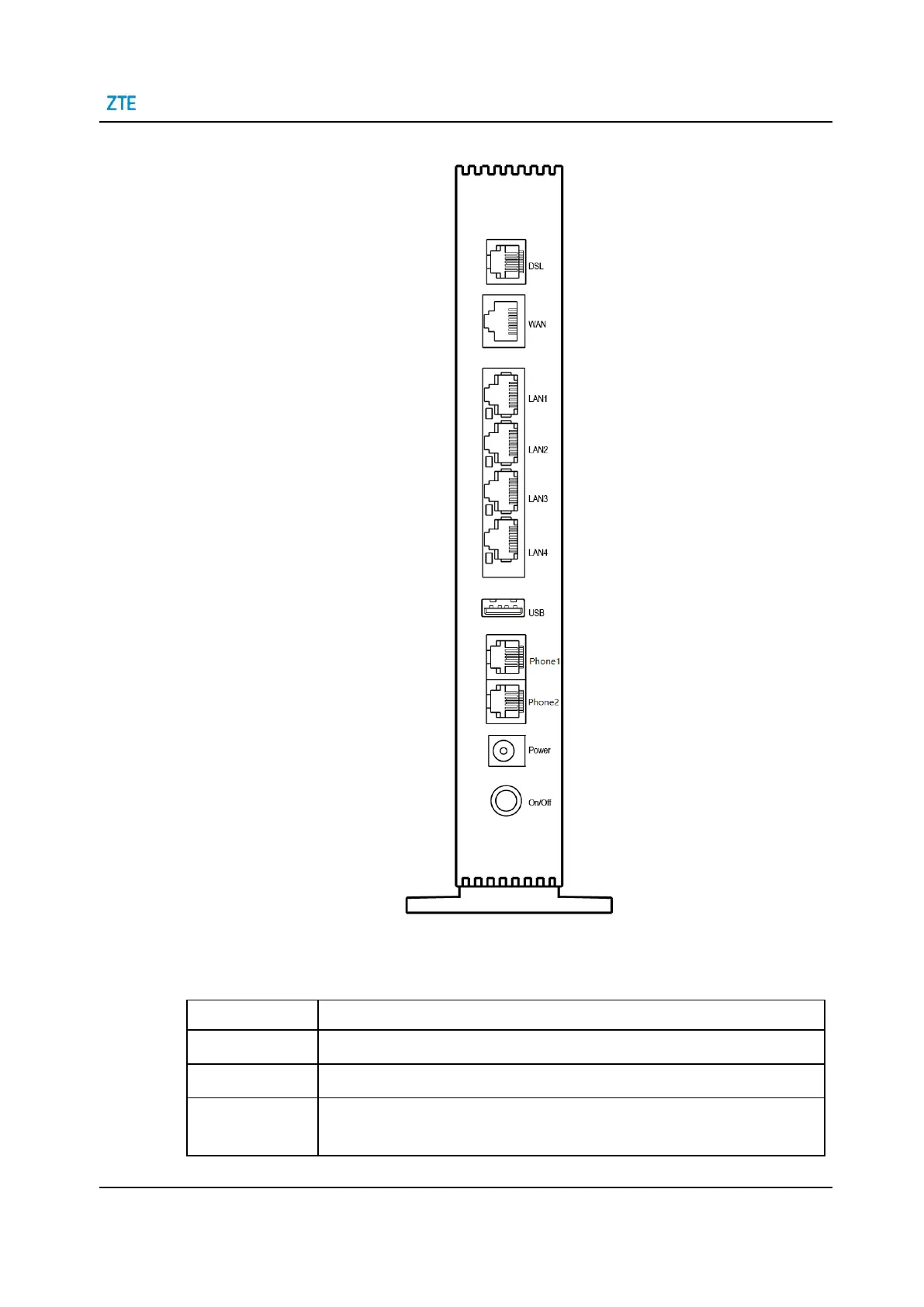

Figure 2-3 The The The Side Panel
Table 2-4 describes the interfaces and buttons on the side panel of the ZTE H1600.
Table 2-4 Descriptions of the Side Panel
Interface/Button
Function
DSL
RJ-11 port. It is used to connect to the xDSL uplink access network.
WAN
RJ-45 port. It is used to connect to the uplink Ethernet access network.
LAN1\LAN2\
LAN3\LAN4
RJ-45 port. It is used to connect the modem to computer, STBs or other network
devices.
