Dimension GS-3012 Gigabit Ethernet Switch

Getting to Know the GS-3012 1-7

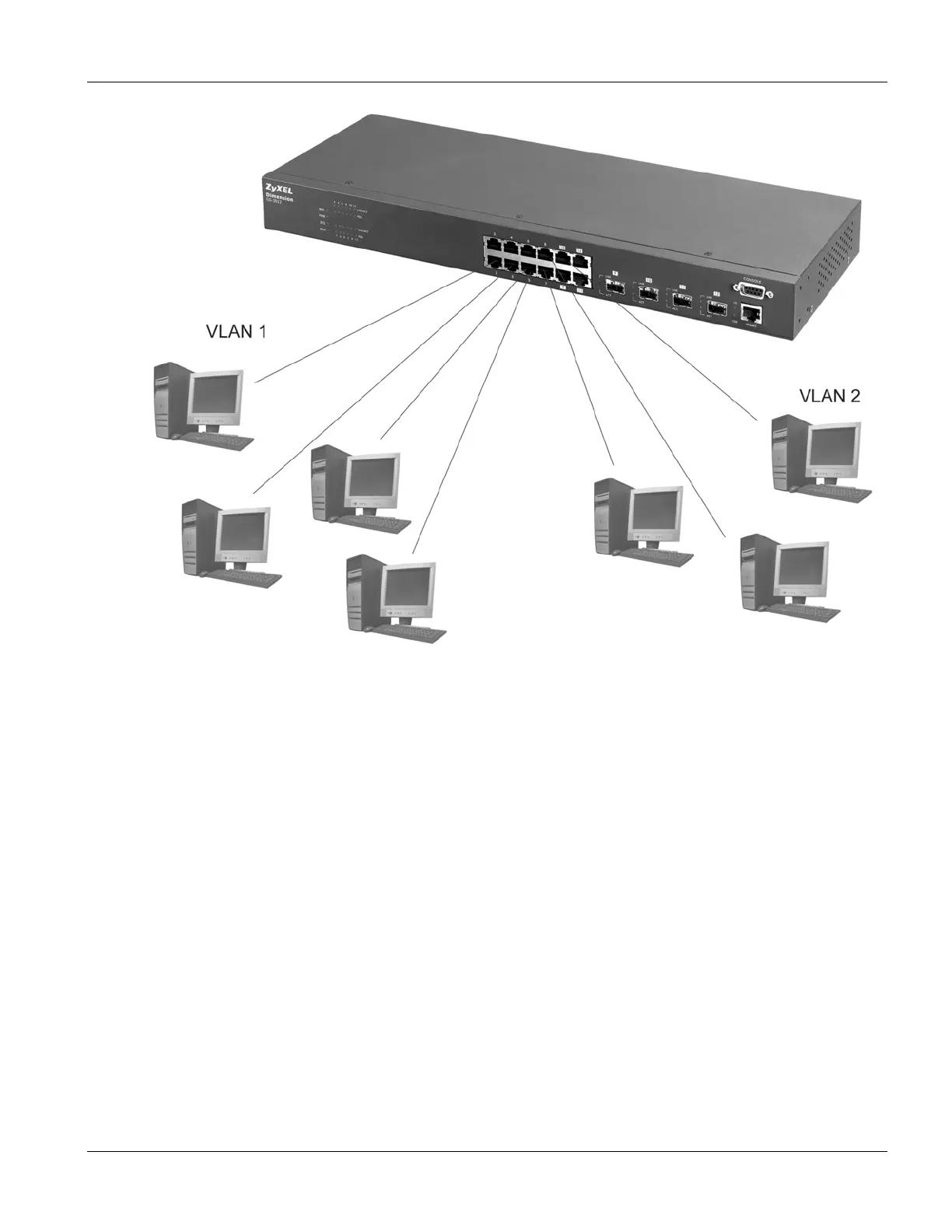

Figure 1-4 VLAN Workgroup Application

VLAN Shared Server Example

Shared resources such as a server can be used by all ports in the same VLAN as the server, as shown in the

following example. In this example, only ports that need access to the server need belong to VLAN 3 while they

can belong to other VLAN groups too.
