Transceiver Removal
Use the following steps to remove a mini GBIC transceiver (SFP module).
Step 1. Open the transceiver’s latch (latch styles vary).
Step 2. Pull the transceiver out of the slot.

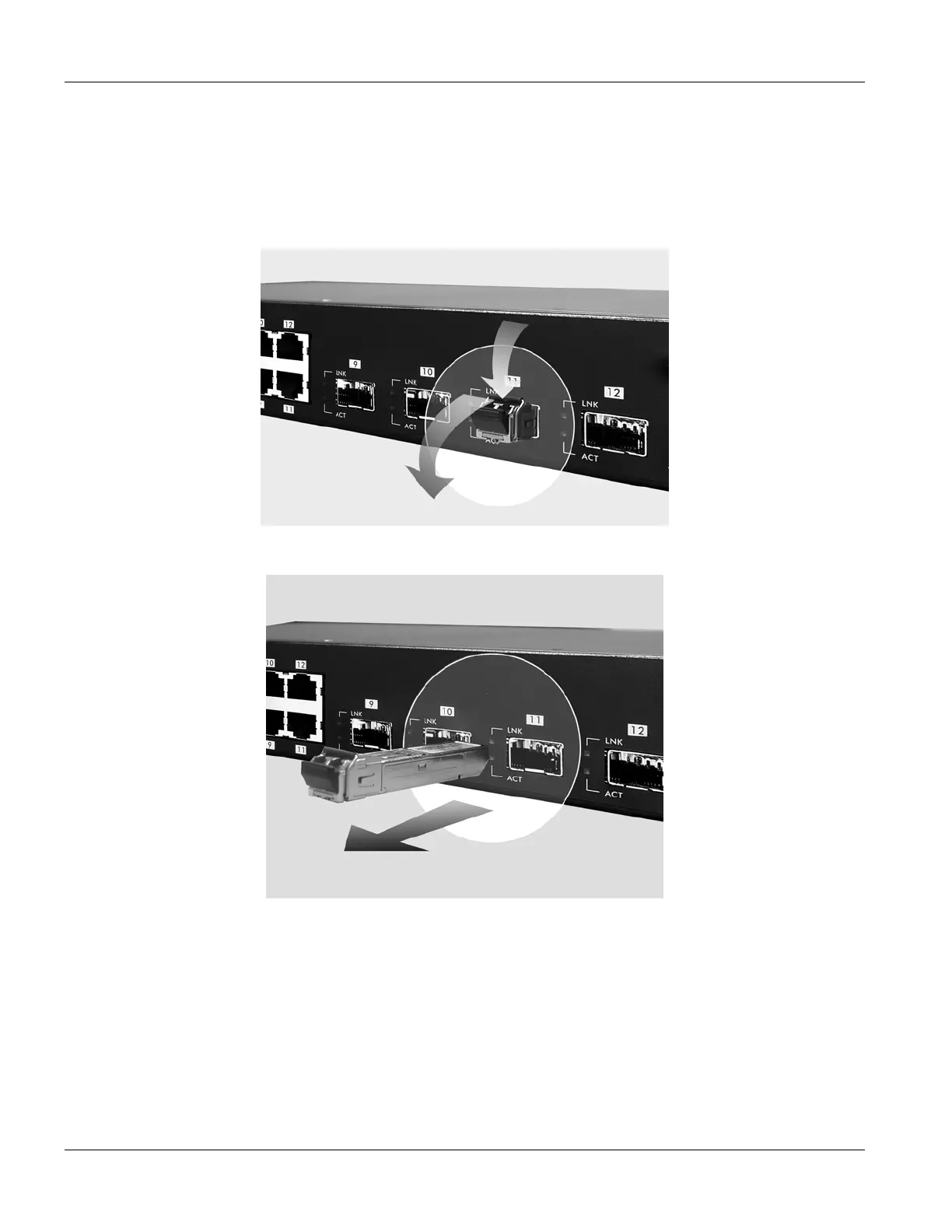

Figure 3-4 Opening the Transceiver’s Latch Example
Figure 3-5 Transceiver Removal Example
3.2.4 Management Port
The MGNT (management) port is used for local management. The port is not used for network data transmission
meaning that it is out-of-band. Connect directly to this port using an Ethernet cable. You can configure the switch
via Telnet or the web configurator.
The default IP address of the management port is 192.168.0.1 with a subnet mask of 255.255.255.0.
