Configuration manual for 2N IP intercoms
42 / 282

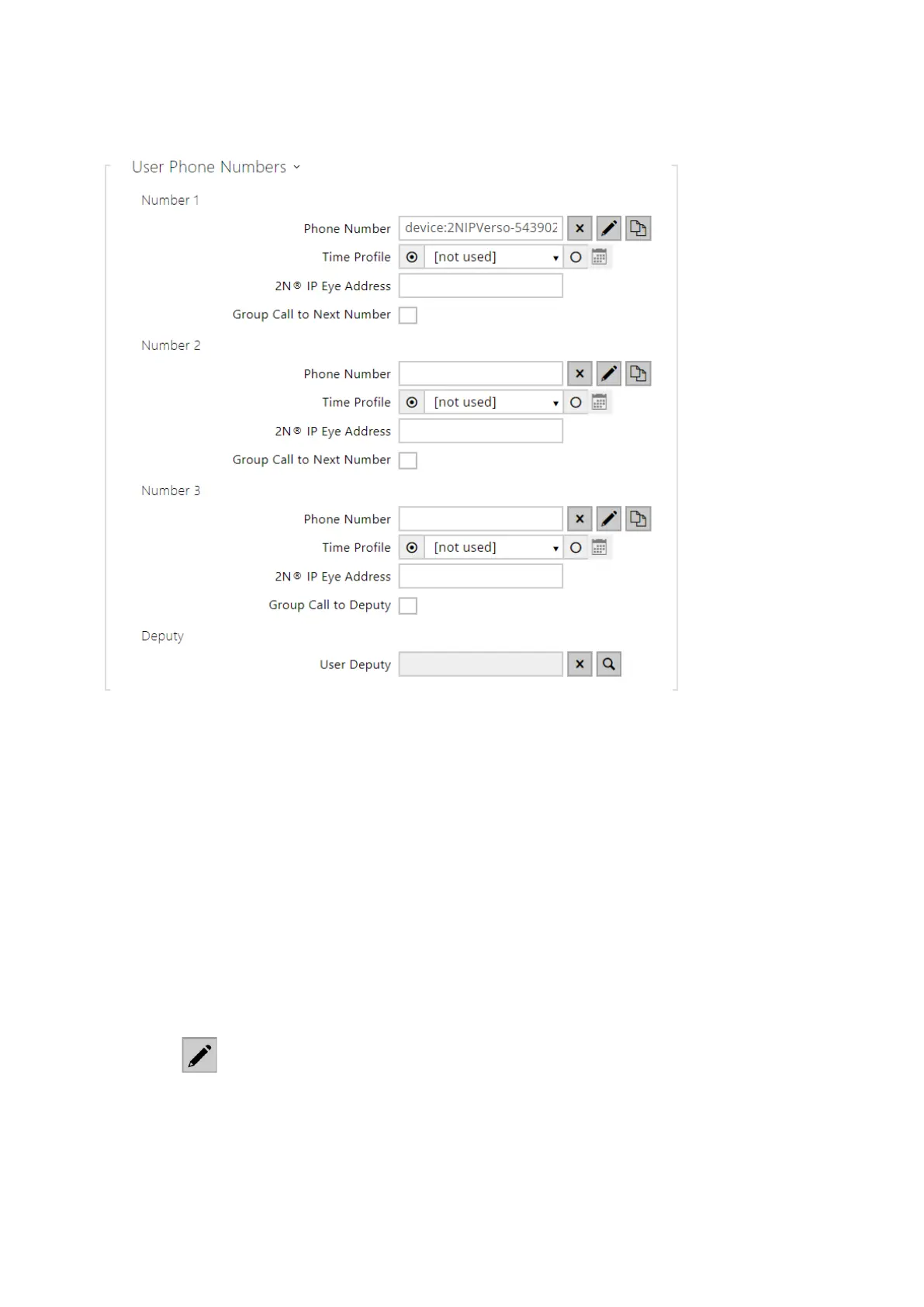

Each user in the list can be assigned up to three phone numbers.In case the user is inaccessible
on one number, the following number will be dialed after a ringing timeout. Enable theParallel
call to following numberto enable dialing multiple numbers simultaneously. The phone
number validity can also be time profile-limited.
Phone Number– enter the phone number of the station to which the call shall be routed.
Enter the address sip:[user_id@]domain[:port] for Direct SIP calling, e.g.:
sip:200@192.168.22.15 orsip:name@yourcompany. For local calls to the 2N IP intercoms
and answering units enter device:device ID. Set the device name in the respective
devices.For calls toCrestronenter RAVA:device_name.Enter/1or/2behind the phone
number to specify which SIP account shall be used for outgoing calls (account 1 or
2).Enter /S or /N to force an encrypted or unencrypted call respectively. Enter /B to
activate door opening via Callback. Combine account selection, encryption and Callback
door opening by e.g. /1S, /1B. etc.The parameter can contain up to 255 characters.
Click  to edit the phone number details.
