DUA1640-5AAA02
Cabling A-3
Cabling
This section shows the pin-outs for the various cables that are used
with the PS Hub. These cables are available from your supplier.
10BASE-T Cable

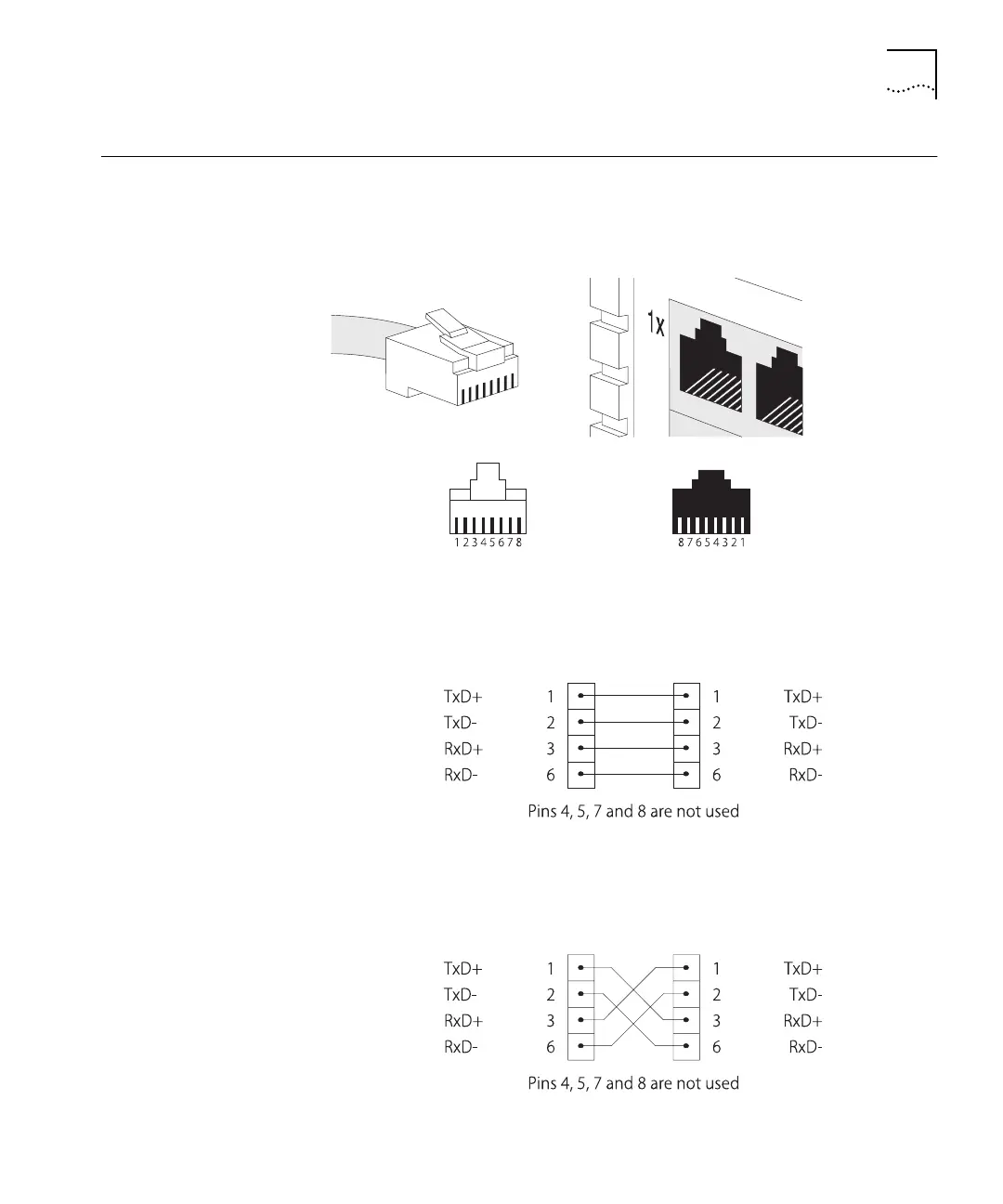

Figure A-1
Pin Numbering for 10BASE-T
Straight-through
Figure A-2
Straight-through 10BASE-T Cabling
Crossover
Figure A-3
Crossover 10BASE-T Cabling
