Configuring the Segment Switch B-17
Configuring the
Segment Switch
All PS Hub 50 units have a segment switch. If you have multiple
PS Hub 50 units in a stack, only one of the units has its segment switch
enabled, called the
active segment switch
. You can use Quick Config
Manager to connect or isolate the stack’s active segment switch from
the cascaded segments. For information on the PS Hub 50 unit’s
segment switch, refer to “Segment Switch” on page 2-2
.
This functionality in Quick Config Manager is not available if there is
not a PS Hub 50 in the stack.
To configure the segment switch:
1
Do one of the following:
■
Double-click on the graphical representation of the stack (but not on
a port).
■
From the
Configure
menu, select
General Info
.
2
In the General Info dialog box, select the
Switch Conf
category.

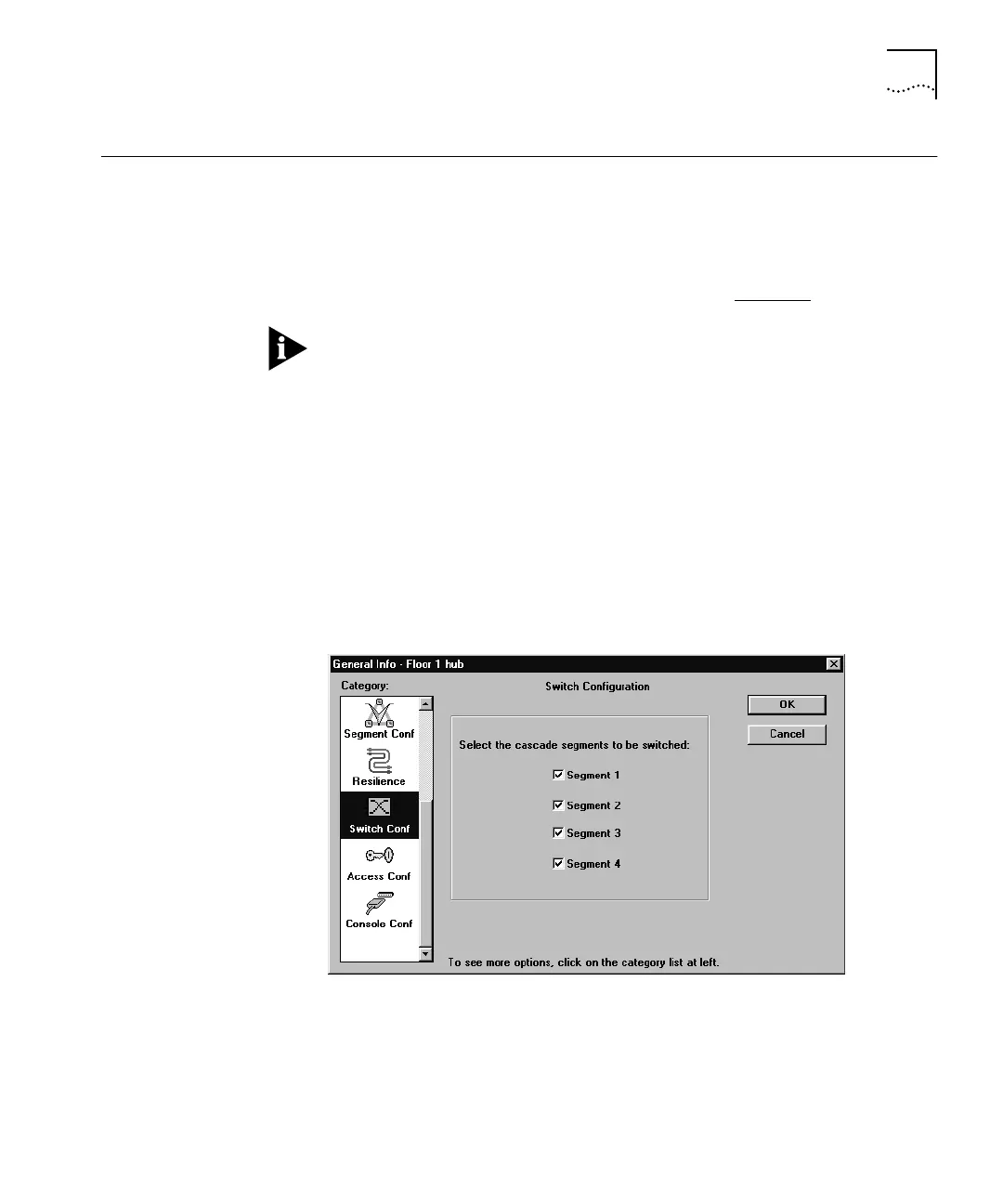

Quick Config Manager displays the Switch Configuration panel, as
shown in Figure B-7.
Figure B-7
Switch Configuration Panel
3
Use the checkboxes to connect or isolate the segment switch from the
cascaded segments, as required.
4
Click
OK
.
