Service Manual FireCR
+
Computed Radiography Scanner
38 Troubleshooting | FireCR
+

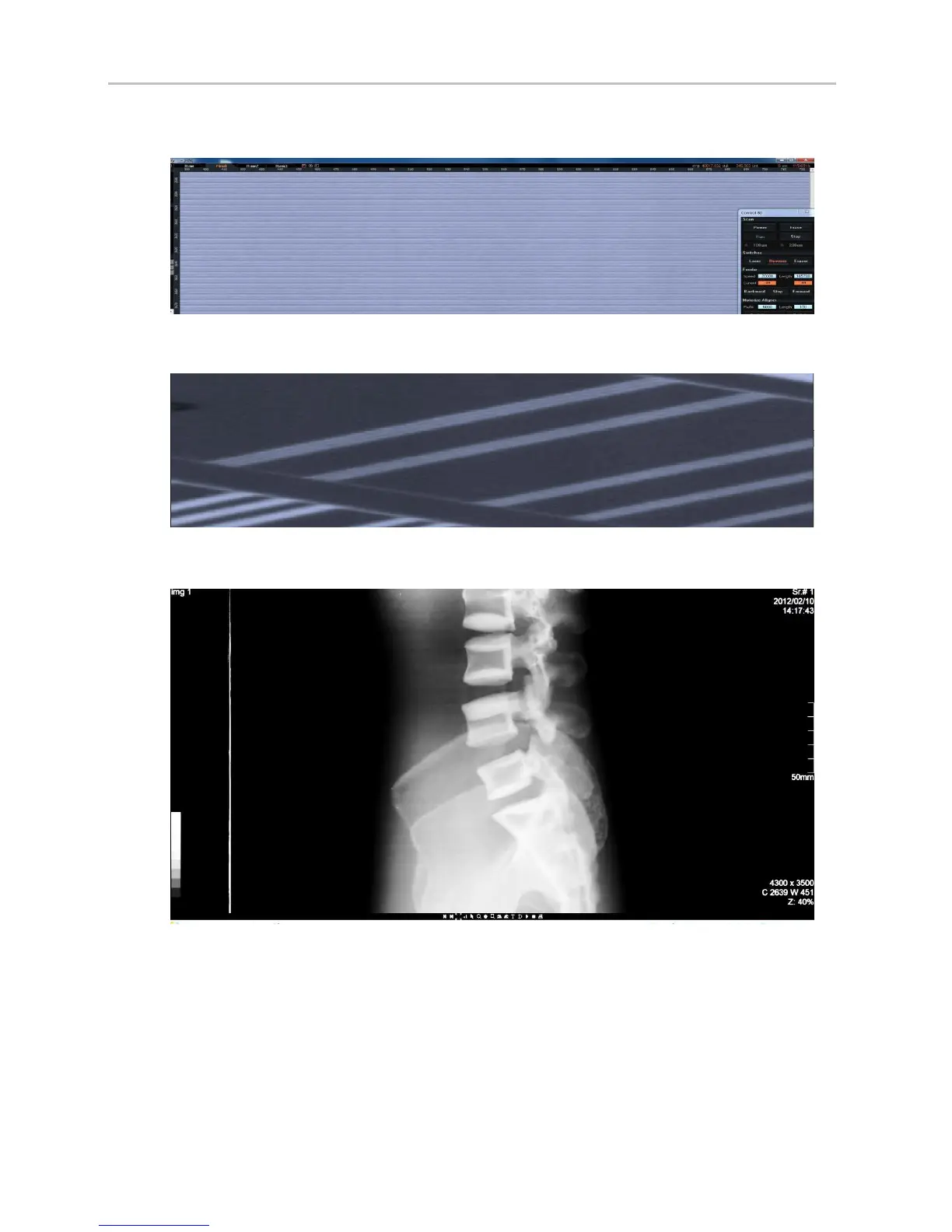

Figure 5. Example of incorrect alignment of optics mirror.
Figure 6. Example of defective optics module (unstable Laser power).
Figure 7. Example of horizontal lines from a faulty Y-axis motor or an incorrect stage alignment.
To correct this issue, please follow the mechanical troubleshooting manual (readjust the Stage
assembly including Timing belt or replace the defective Y-axis motor).
