Installation Manual v3.1 | VISIX S-Series Network Camera

12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC

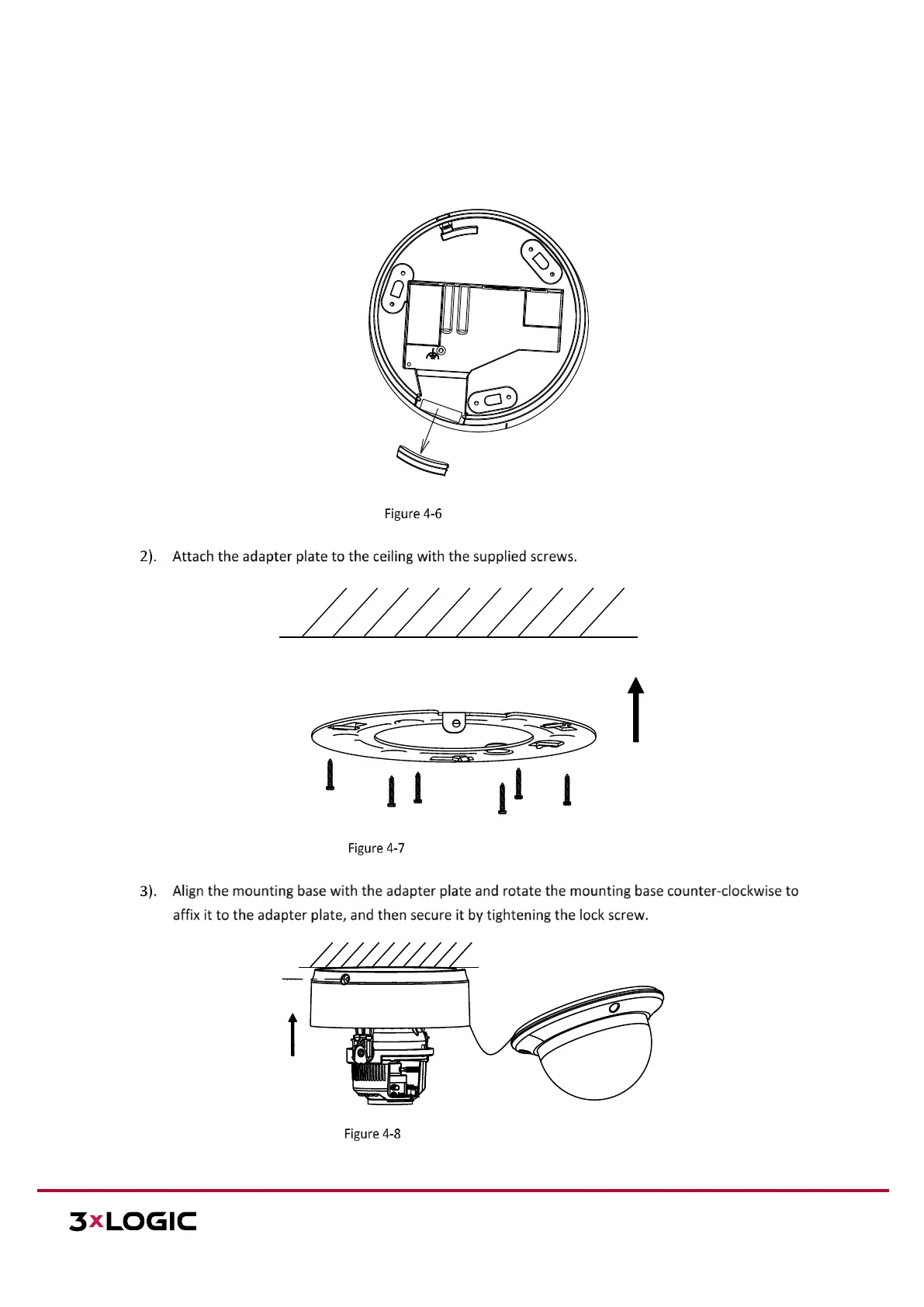

NOTE: (Optional) Routing the cable from the side outlet instead of the cable hole drilled on the ceiling is

possible. Use pliers to remove the part shown in Figure 4-6, and simply route the cables through the side

outlet.

Side Outlet

Install the Adapter Plate

Install the Mounting Base

Side Outlet

Lock

Screw
