Note:

 The drill template may vary according to different camera models.

 (Optional) Routing the cable from the side outlet instead of the cable hole drilled on the ceiling

is supported.

Side Outlet

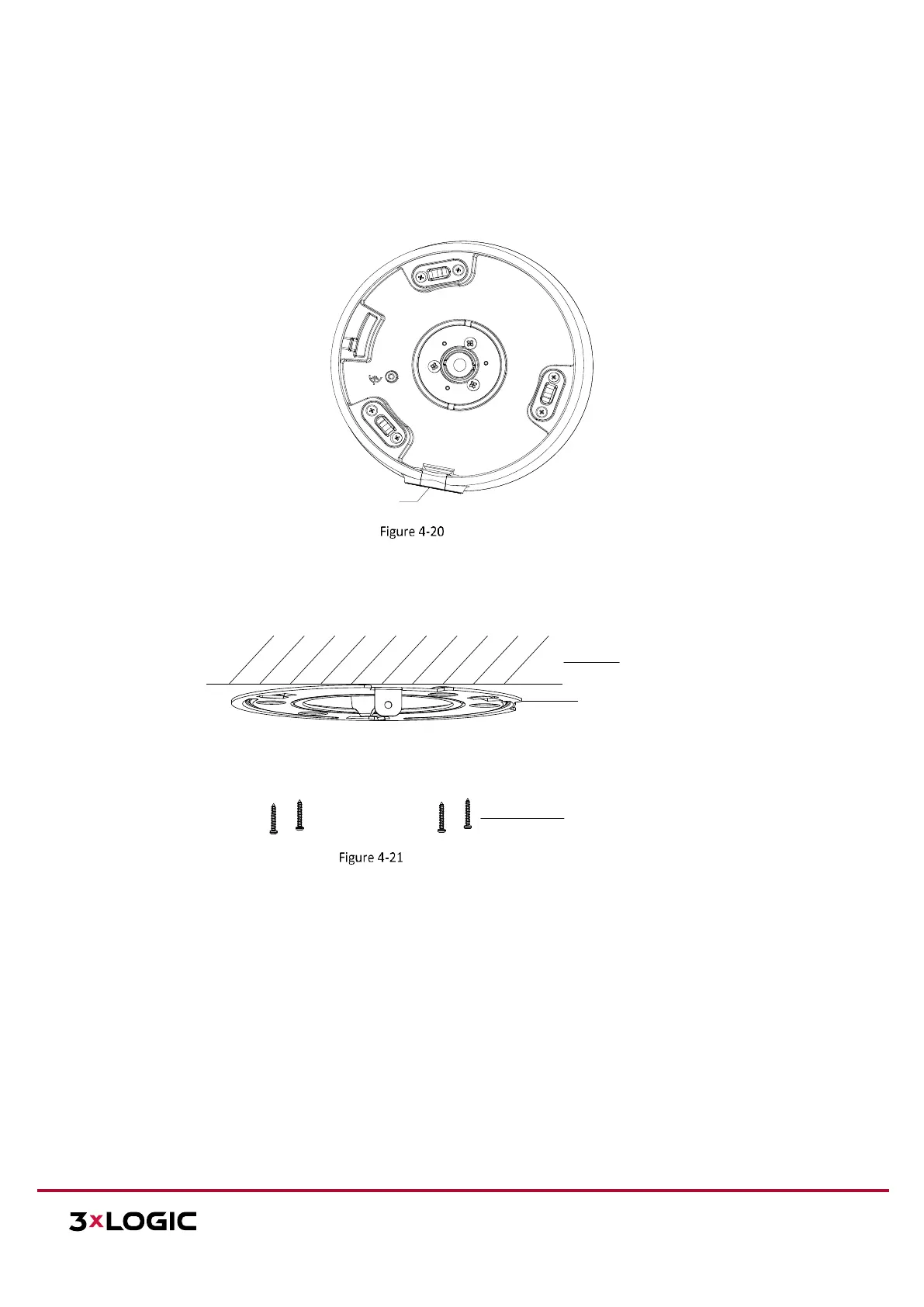

3. Fix the mounting base to the ceiling with the supplied screws.

Ceiling

Mounting Base

Screws

Install the Mounting Base

4. Align the camera body with the mounting base and rotate the camera body counterclockwise to get it fitted

with the mounting base.
