Steps:

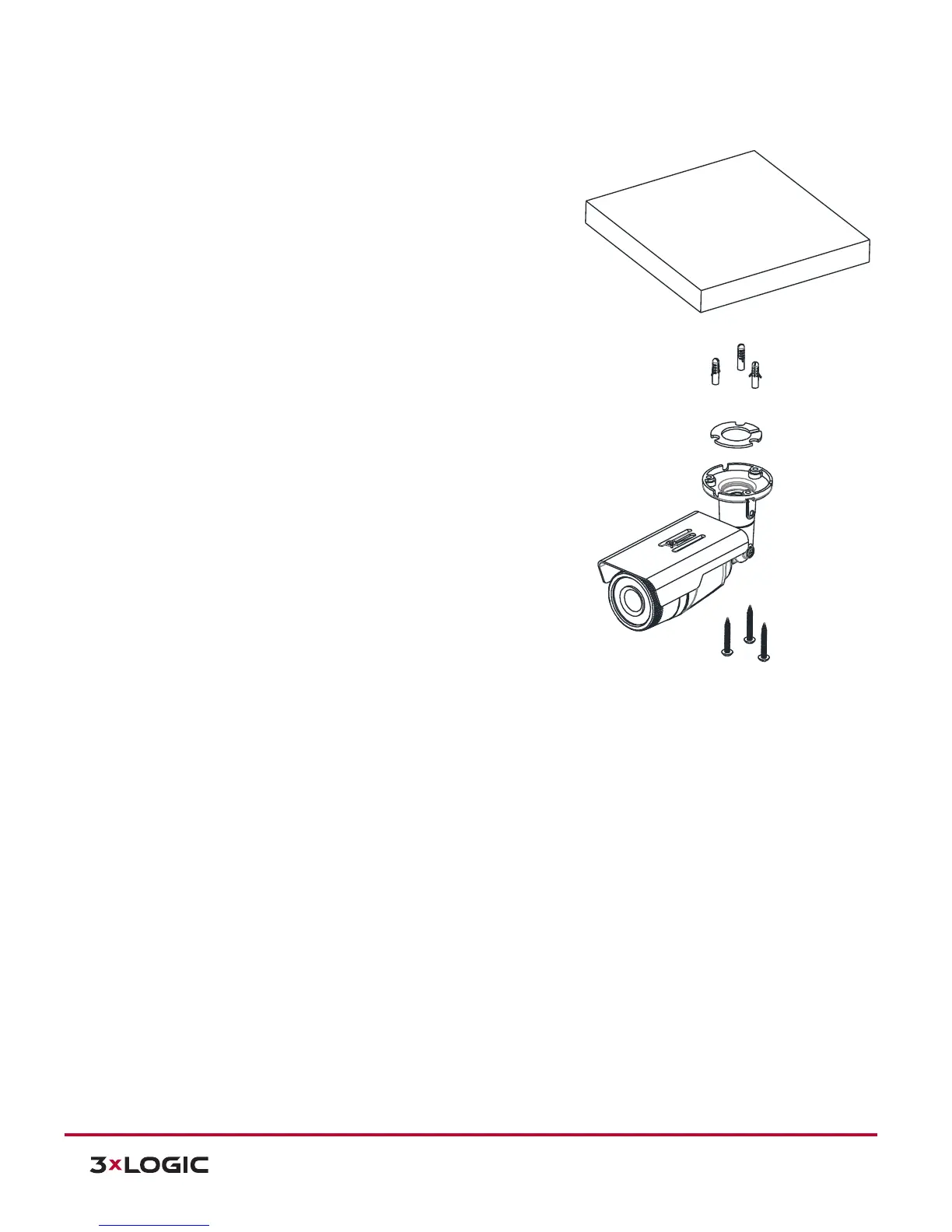

1). Place the installation template included in the package
on the desired installation surface.
2). Drill three holes in correct positions based on the
template paper, and insert the anchor blocks into the
holes.
3). Attach the silicon waterproof band included in the
package to the camera’s mounting surface by aligning it
with the three alignment holes.
4). Connect the required cables including a power cable
and a LAN cable (or PoE connection) to the device. See
Section 2.5: Connections for a diagram of the correct
connections.
5). Place the camera body to match the three alignment
holes with the three anchor blocks, and hold the camera
against the surface where the camera will be mounted.
6). Tighten the anchor blocks with the screws.
7). Adjust the heading direction of the camera. Refer to
Adjusting Angle of the Camera for more details.
8). Adjust zoom and focus of the camera. Refer to Adjusting
Zoom and Focus for more details.
9). Attach the lens cover on the main body by rotating it
clockwise
CAUTION: Sealing gaps is recommended as gaps may appear after
the camera installation. Gaps may cause problems such as
moisture, water leakage, and etc., which negatively affects the
operation of the camera if gaps remain unsealed.
CAUTION: To prevent products from damage, place the camera
on a stable and non-vibrating surface. If the stability is in doubt,
consult safety personnel for reinforcements, and then proceed
with the installation.
