4.8.3 CEILING MOUNT - VX-2AD-CM
Contents
Installation
Steps:
1). Drill three holes for the plastic anchors based on the installation template as well as the hole
for the cable dropped from the ceiling. Then, route the LAN cable through the bracket’s pipe.

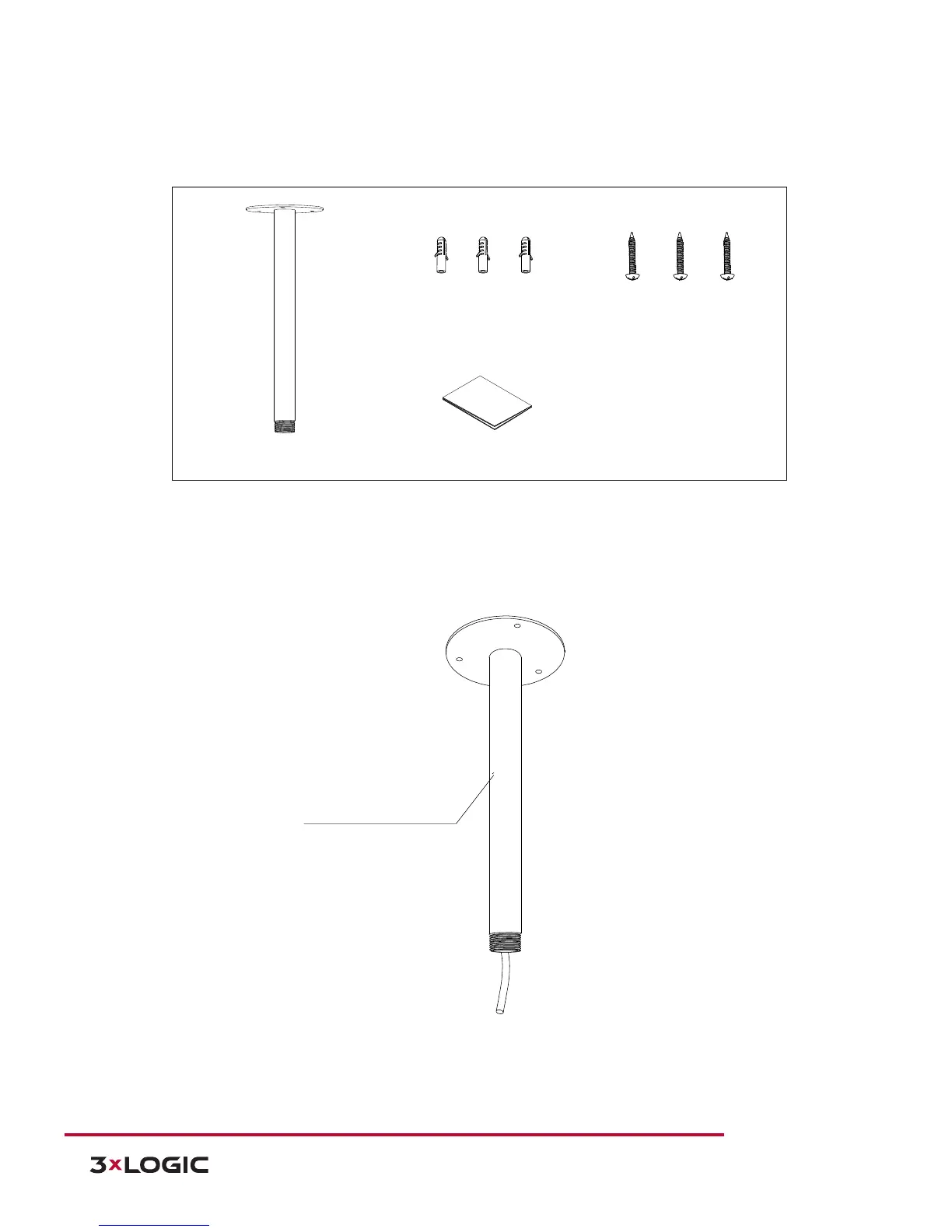

Ceiling Mount Bracket
Tapping Screw 3ea
Plastic Anchor 3ea
Installation Template 1ea
Ceiling Mount Bracket
