4.4 Installation
4.4.1 INSTALLING THE CAMERA – INSTALLING WITHOUT BRACKET

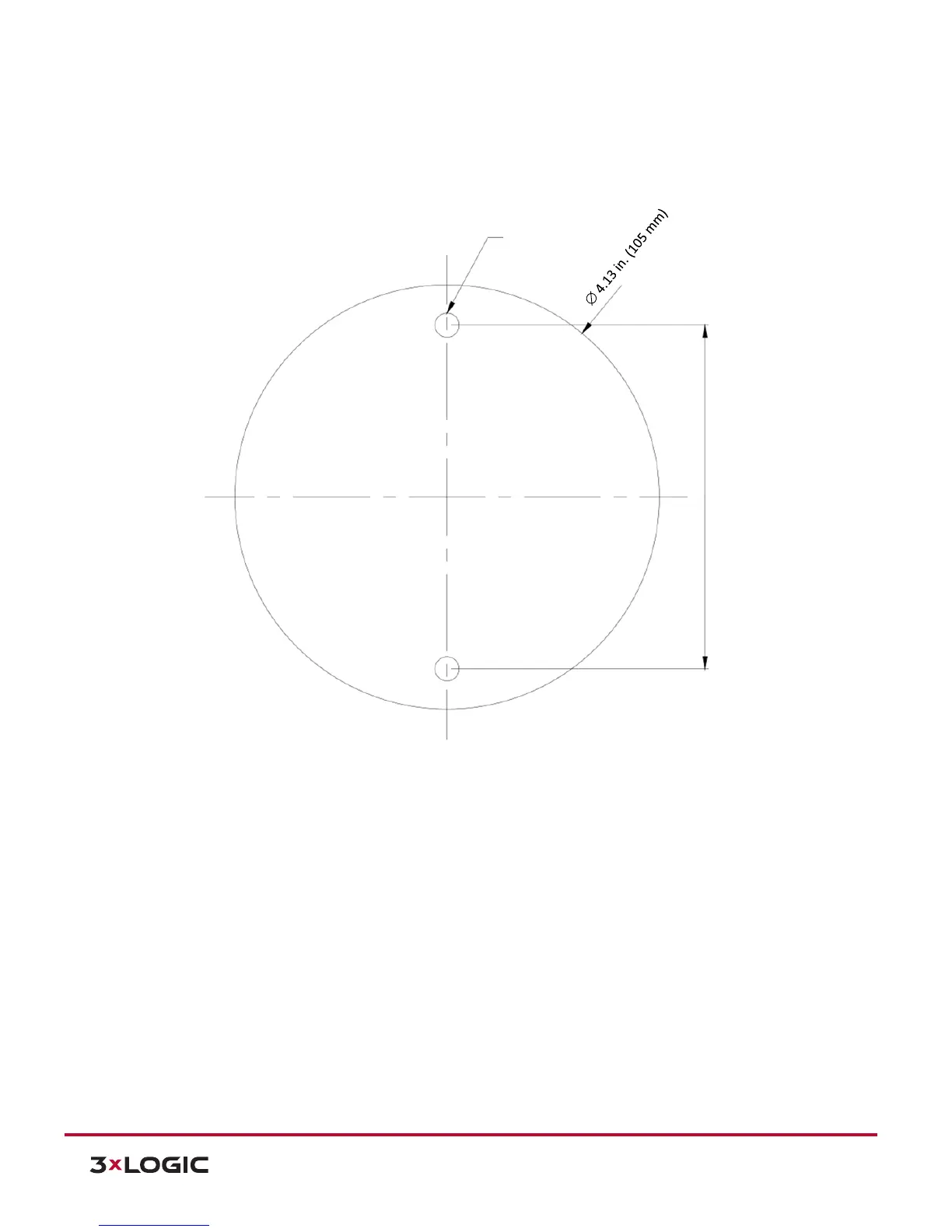

Installation Template
CAUTION: Installation template’s image size scale in this installation guide is not 1:1. The correct-size
template design paper can be found inside the package separately.
2 x .236 in. (6 mm)
3.35 in. (85 mm)
