Hardware and Installation Manual| VISIX V-Series All-in-One Cameras – Gen I
12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
55

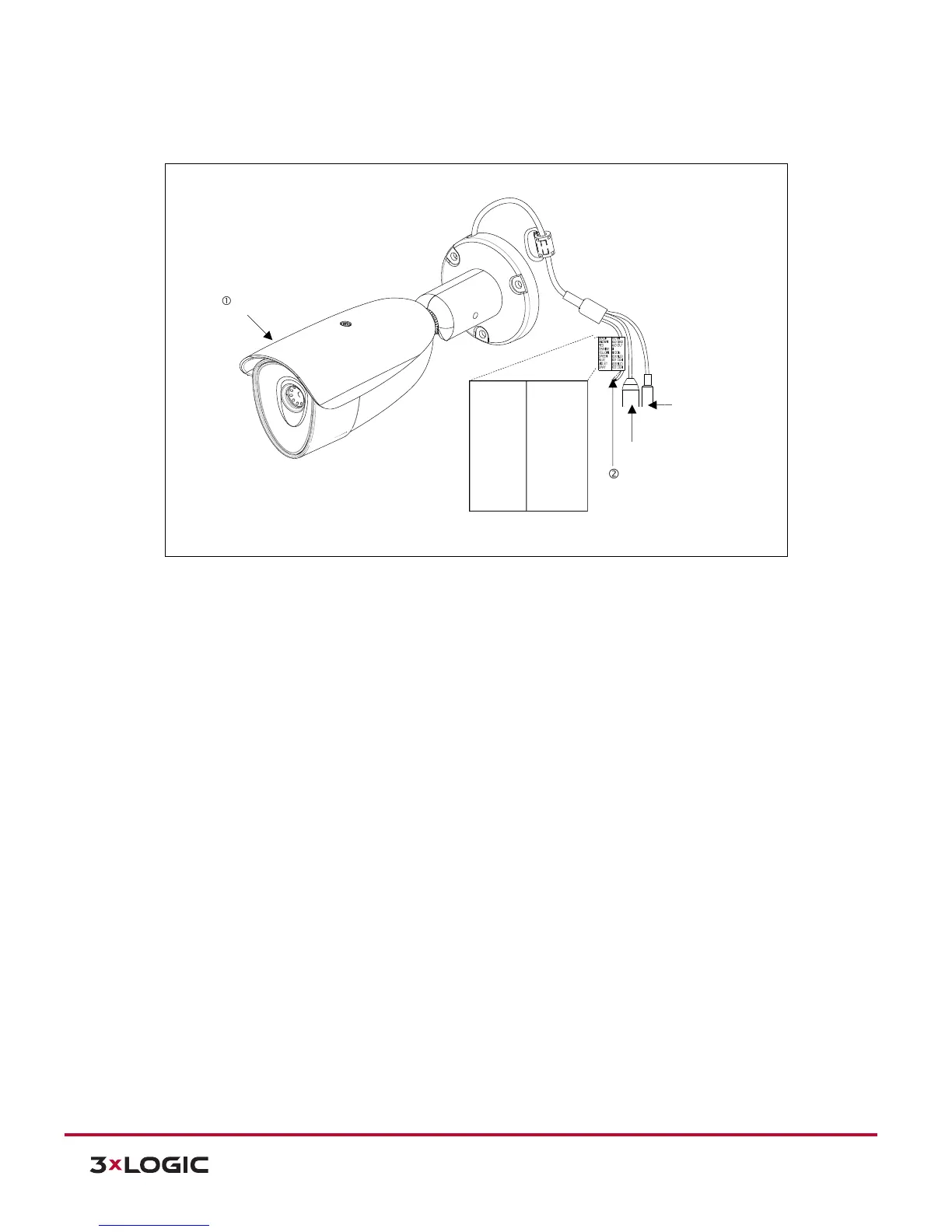

5.3 Part Names
1). Sunshield: It prevents direct sunlight.
2). Audio|Sensor|Alarm connection cables: Cables to connect audio input(microphone), audio
output(speaker), digital input(sensor), and digital output(alarm). Refer to Section 5.5: Connections
for more information.
3). LAN connector: RJ45 LAN connector for 10/100 Base-T Ethernet (PoE supported).
4). Power adaptor connector: Connect the provided DC12V adaptor for power supply.
Torx Wrench
Screw &
Plastic Anchor-3pcs
Quick Installation Guide
Installation Template
Adaptor & AC Plug
WALL CUSHION
CABEL CORE
BLACK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
AUD IN
AUD GND
AUD OUT
DI
DI COM
DO1(N.O)
DO1 COM
DO2(N.C)
DO2 COM
 Audio|Sensor|Alarm
connection cables
LAN connector
 Sunshield
Power adaptor
connector
❶
❷
❸
❹
