Hardware and Installation Manual| VISIX V-Series All-in-One Cameras – Gen I

12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC

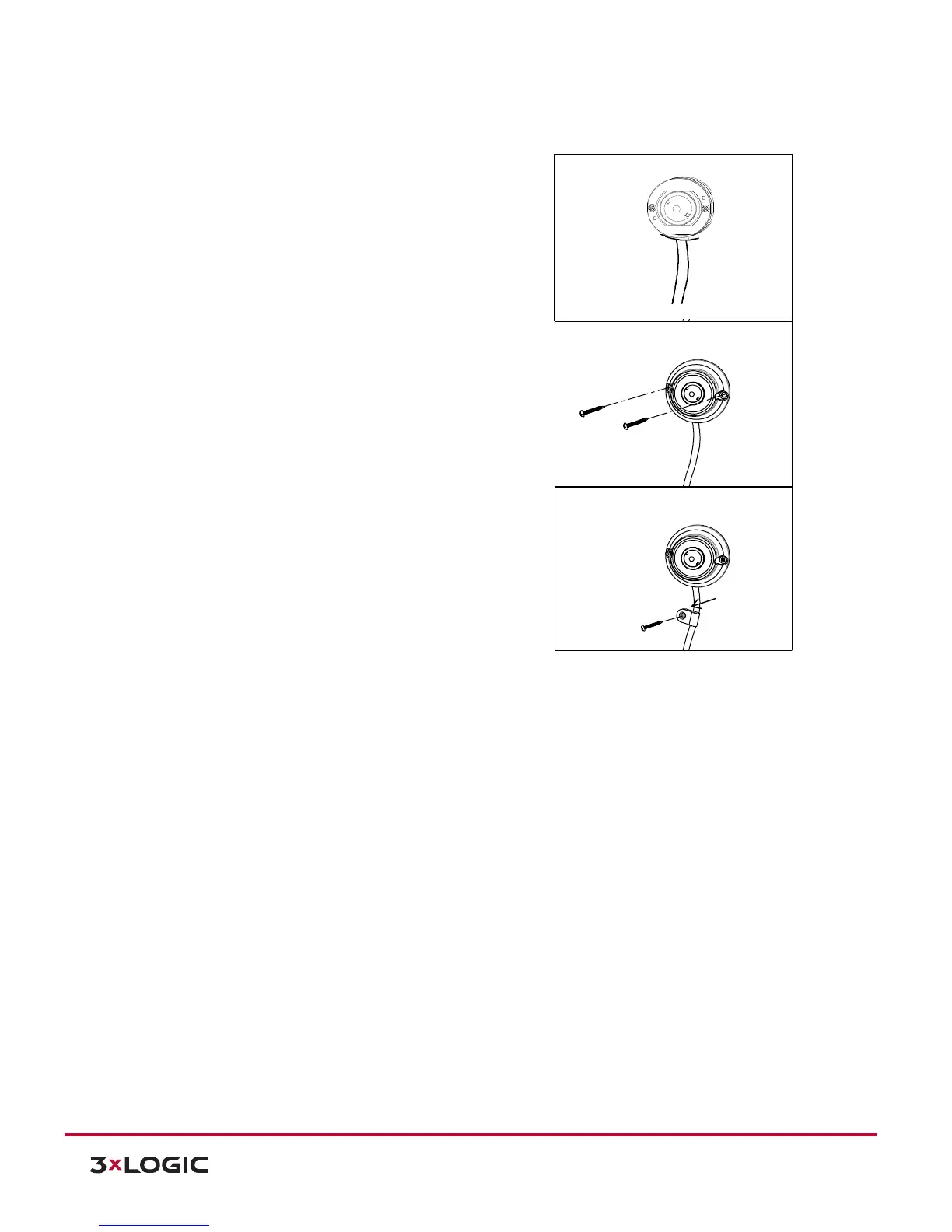

6.4.4 SURFACE INSTALLATION FOR FIXED

ANGLE

Steps:

1). Place the camera on a desired installation surface.

2). Cover the camera with the surface mount

bracket by routing the camera’s cable into the

cable holder on the bracket. Then, fasten the

bracket using the tapping screws (M3x20) and

anchor blocks appropriate for the material of the

installation surface.

3). Use the cable clamp optionally if you want to fix

the camera’s cable to a desired spot with a

tapping screw (M4x20).

cable clamp
