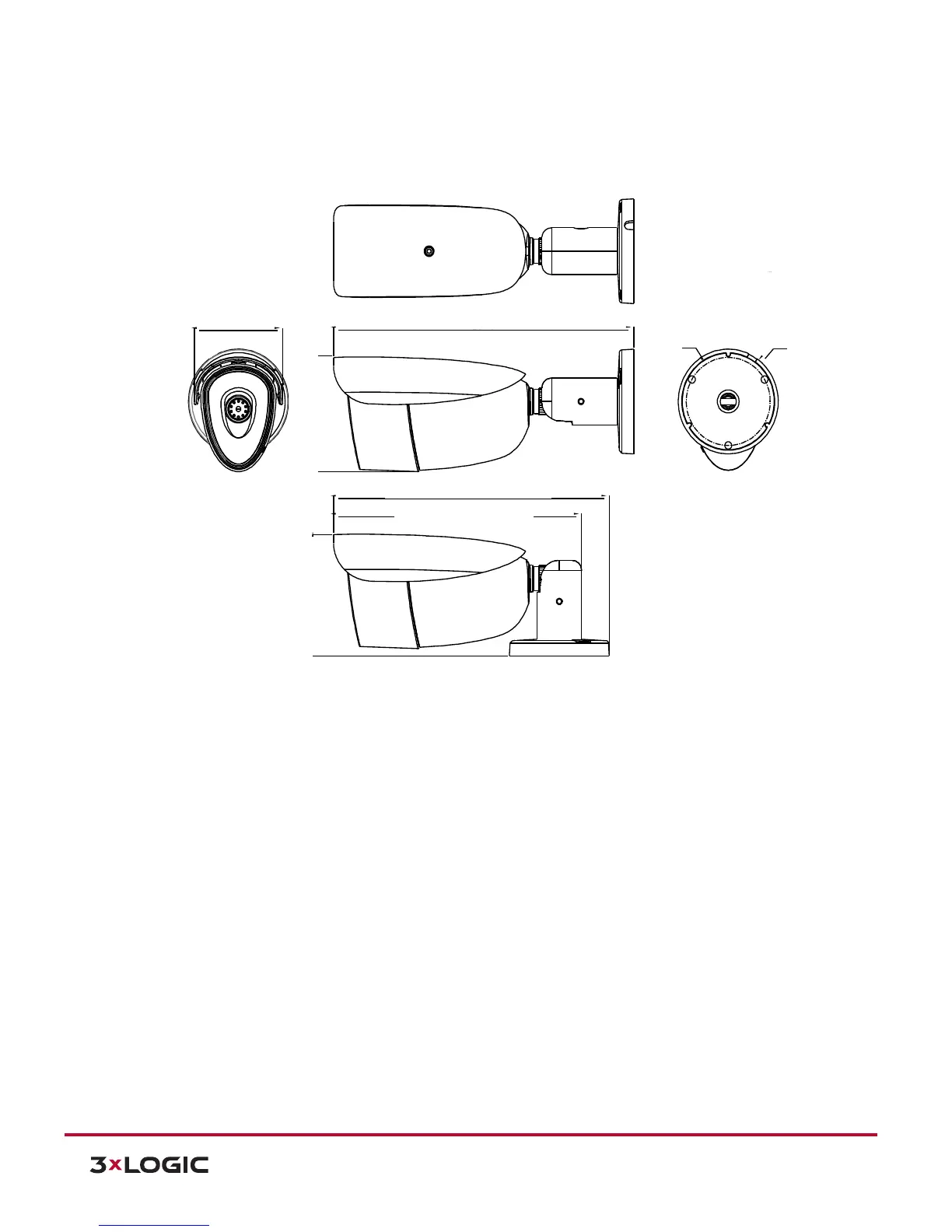

5.7 Camera Dimensions
Torx Wrench
Screw &
Plastic Anchor-3pcs
Quick Installation Guide
Installation Template
Adaptor & AC Plug
WALL CUSHION
2.40 in. (61 mm)
8.17 in. (207.5 mm)
2.99 in. (76 mm)
7.5 in. (190.5 mm)
6.75 in. (171.5 mm)
3.15 in.
(80 mm)
2.28 in.
(58 mm)
2.72 in.
(69 mm)
