Hardware and Installation Manual| VISIX V-Series All-in-One Cameras – Gen I
12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
60

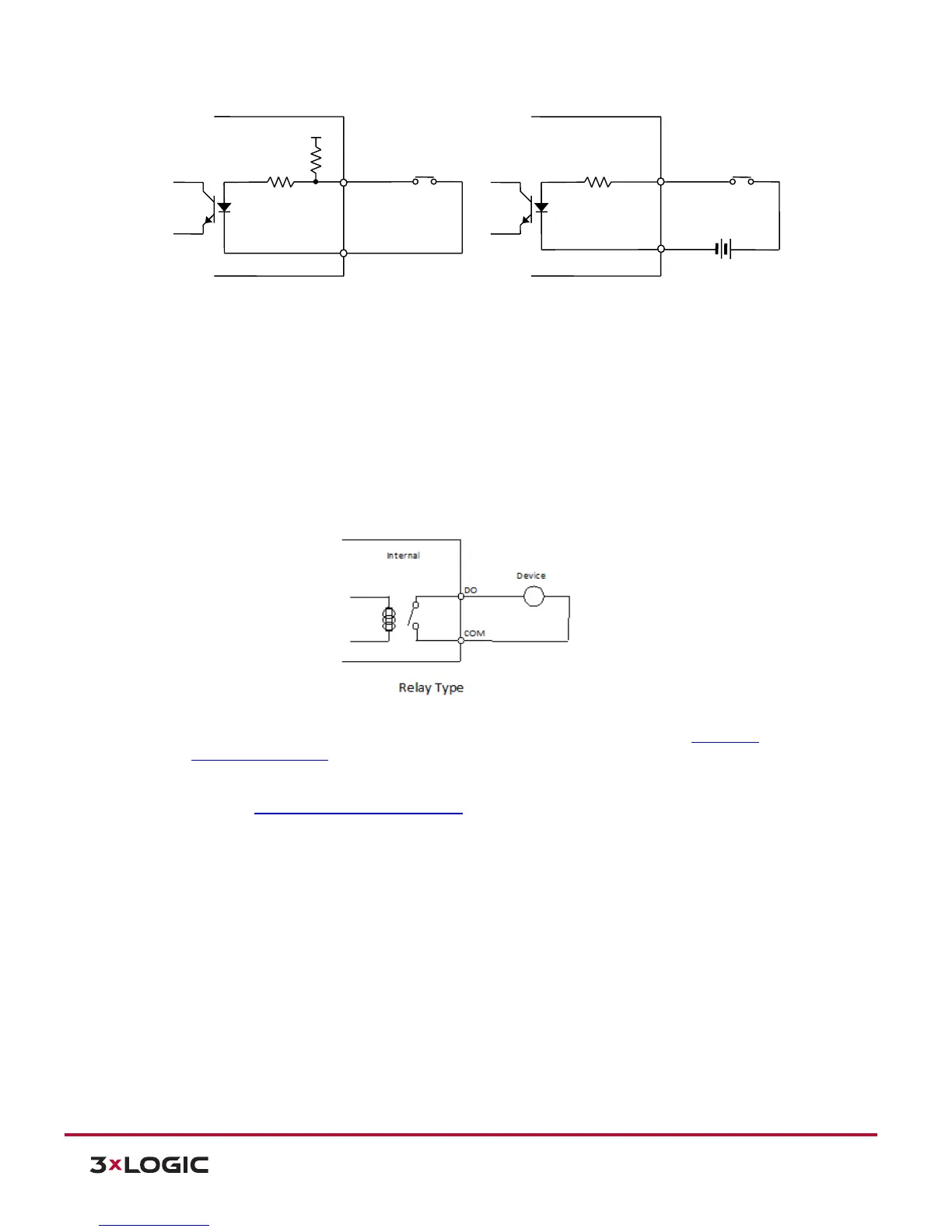

3). Alarm (DO1 | DO2) connection: Only the relay type is supported.
 Digital Output 1
 Relay Rating: Max 30VDC 1A
 Normally Open (N.O) at power off
 Digital Output 2
 Relay Rating: Max 30VDC 1A
 Normally Closed (N.C) at power off
CAUTION: Do not exceed the maximum relay rating.
4). LAN connection: This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Use the Ethernet cable
(RJ45) to connect the device to a hub or a router in the network. Refer to Section 7: Power over
Ethernet Specifications for more information.
5). Power Connection: The camera can be powered by either 12VDC or PoE. If the camera is powered
via PoE, you do not need to connect the power adaptor. For more information about PoE, refer to
Section 7: Power over Ethernet Specifications for more information.
NOTES:
 Temperature criterion for the heater operation: 0˚C (32˚F)
 Lowest temperature to guarantee the heater operation during the device operation: -40˚C (-40˚F)
 Lowest temperature to boot up the device when the device is powered on:
 0˚C (32˚F)
+3.3V
DI
COM
DI
COM
+
-
Relay Type
Voltage Type
+
-
Output of
Sensor
Output of
Sensor
Internal
Internal
+
-
