AVAILABLE MOUNTS
Universal Corner Mount (3xLOGIC Product #: VX-CM)
Universal Pole Mount (3xLOGIC Product #: VX-POLE)
This camera can also be used with any standard CCTV Camera bracket for wall and ceiling mount application.

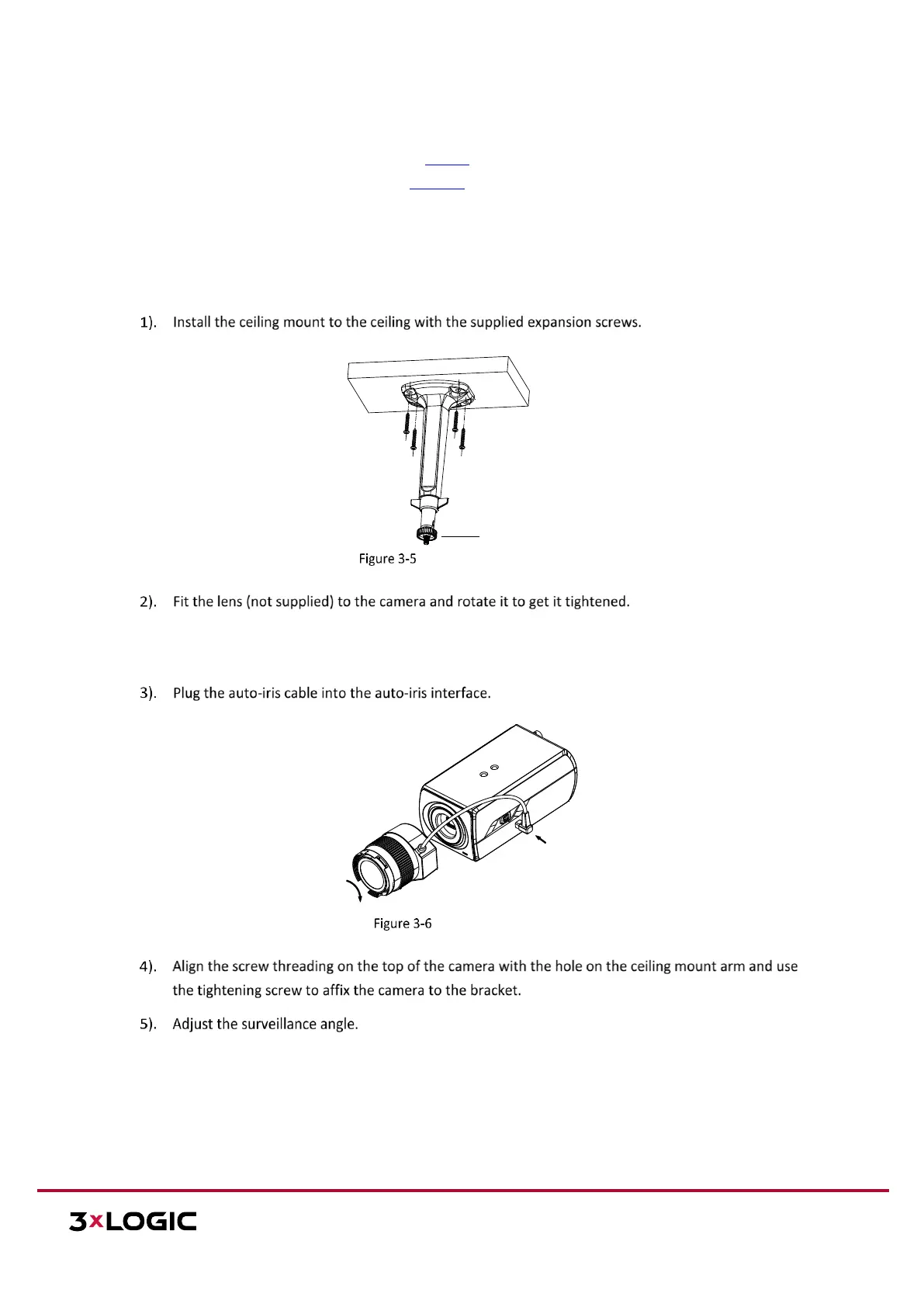

INSTALLATION — CEILING MOUNT
Steps:
Installing the Mount
NOTE: Install the adapter ring to the lens interface if a C-mount lens is used. A manual-iris lens can be directly
installed to the camera without plugging the power cable of the auto-iris into the auto-iris interface.
Install the Lens
a. Loosen the pan nut to adjust the pan angle [0°-360°].
b. Loosen the knob on the ceiling mount to adjust the tilt angle [0°-90].
