3xLogic VX-3M-F-AWD

Installation Manual v3.1 | VISIX S-Series Network Camera
12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
13

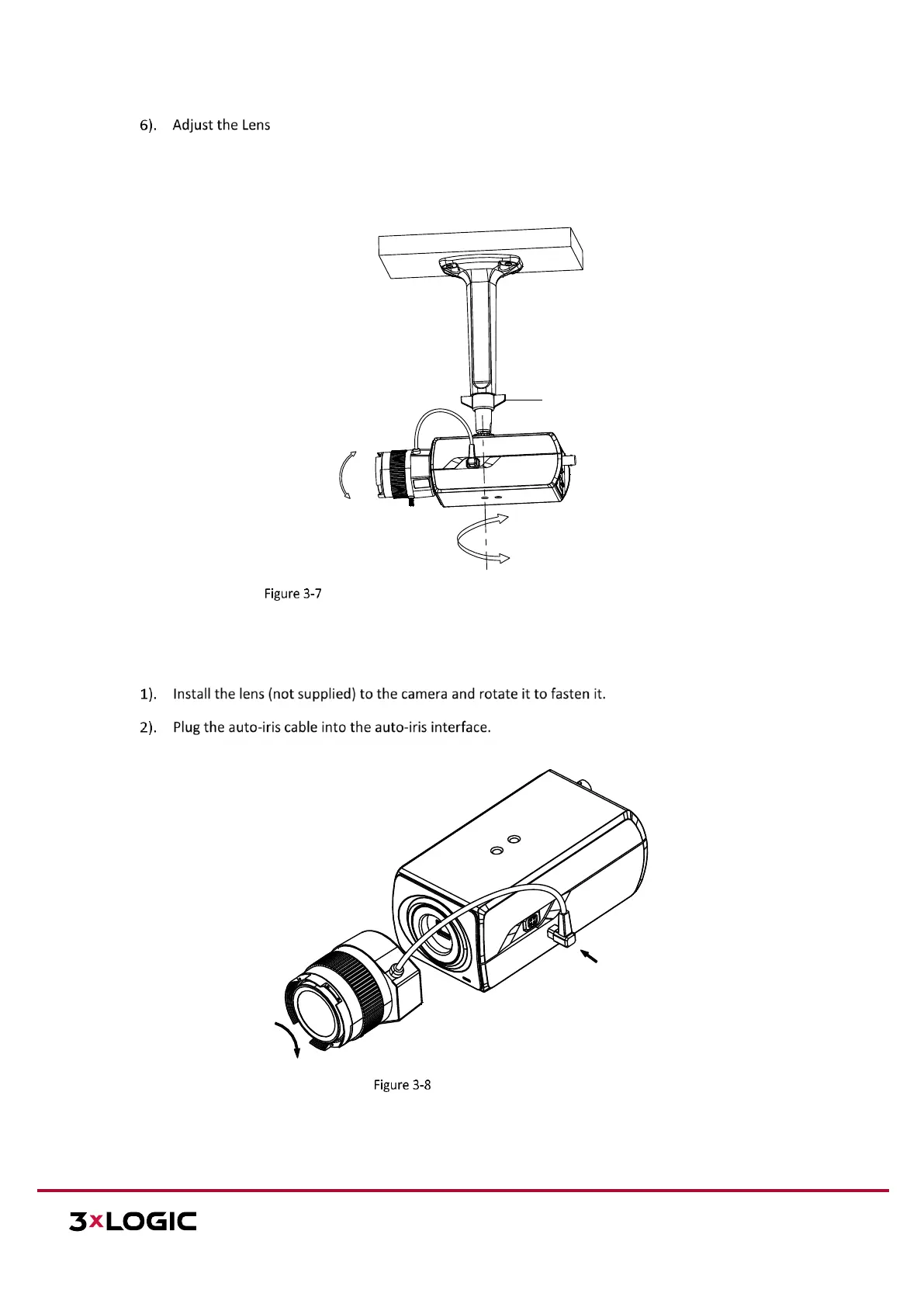

a. Connect the VIDEO OUT interface of the camera to the debugging monitor.
b. Adjust the Zoom Lever and Focus Lever to obtain the desired image on the monitor.
Install the Camera to the Mount and Adjust the Angle
INSTALLATION — WALL MOUNT
Steps:
Install the Lens
Knob
