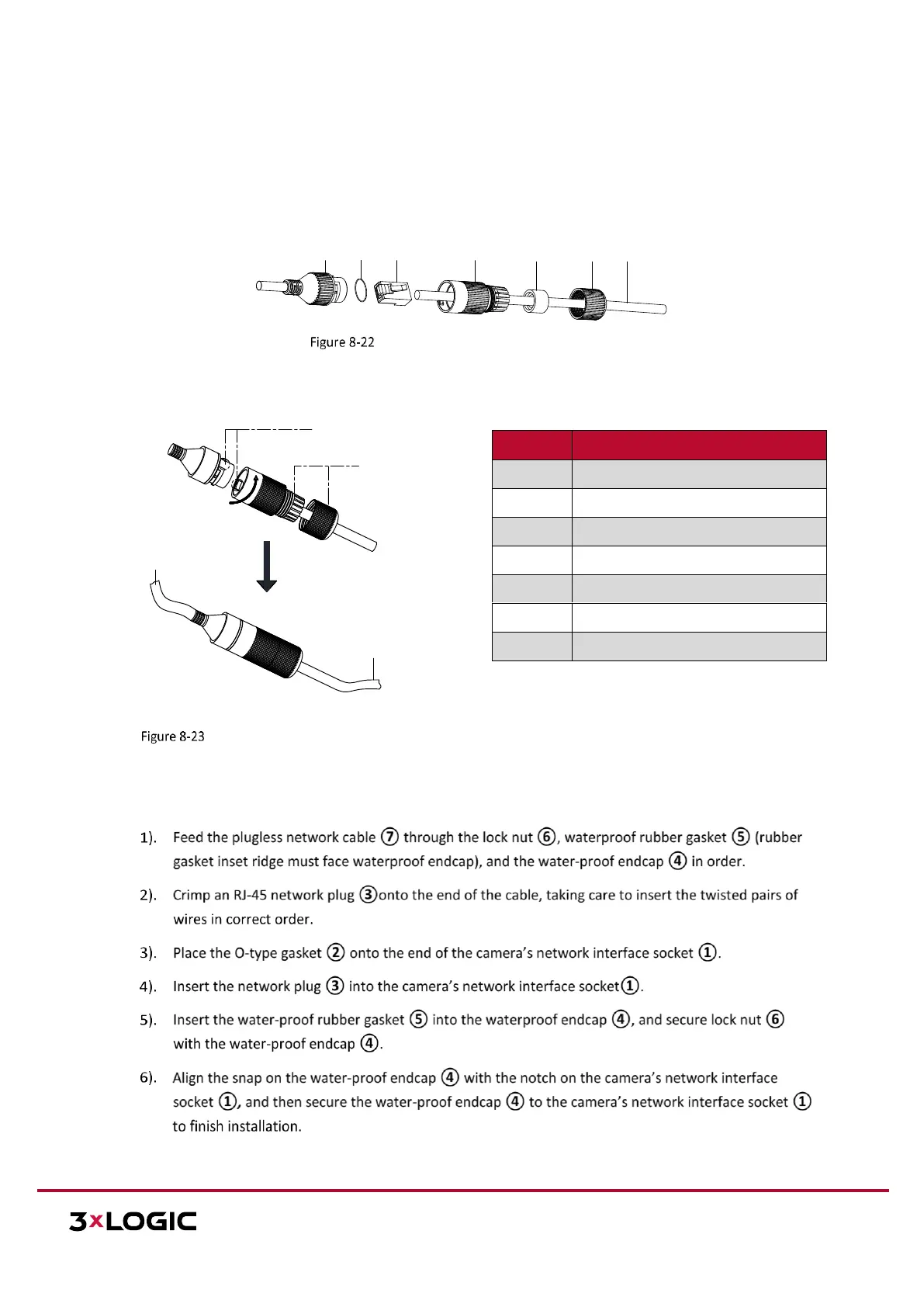

8.2 Waterproof Network Cable Jacket (Optional)
If the camera is installed outdoor, you can adapt the water-proof accessory for the network cable after the
camera is secured on the installation surface.
ACCESSORY COMPONENTS
①
②
③
④
⑤
⑥ ⑦
Waterproof Accessory Components
Camera
Switch/Router
Align the snap and notch.
i. Insert ⑤ into ④.
ii. Secure ⑥ with ④.
Waterproof Accessory Installation
INSTALLATION — WATERPROOF ACCESSORY
Steps:
Number
Components
1
Camera’s Network Interface Socket
2
O-Type Gasket
3
Network Plug
4
Waterproof Endcap
5
Waterproof Rubber Gasket
6
Lock Nut
7
Network Cable from Router/Switch
