3xLogic VX-3M-F-AWD

Installation Manual v3.1 | VISIX S-Series Network Camera
12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
49
AVAILABLE MOUNTS
 OD Wall Mount (3xLOGIC Product #: VX-WM-OD)
 OD Pendant Mount (3xLOGIC Product #: VX-PM-OD)
 Universal Corner Mount (3xLOGIC Product #: VX-CM)
 Universal Pole Mount (3xLOGIC Product #: VX-POLE)

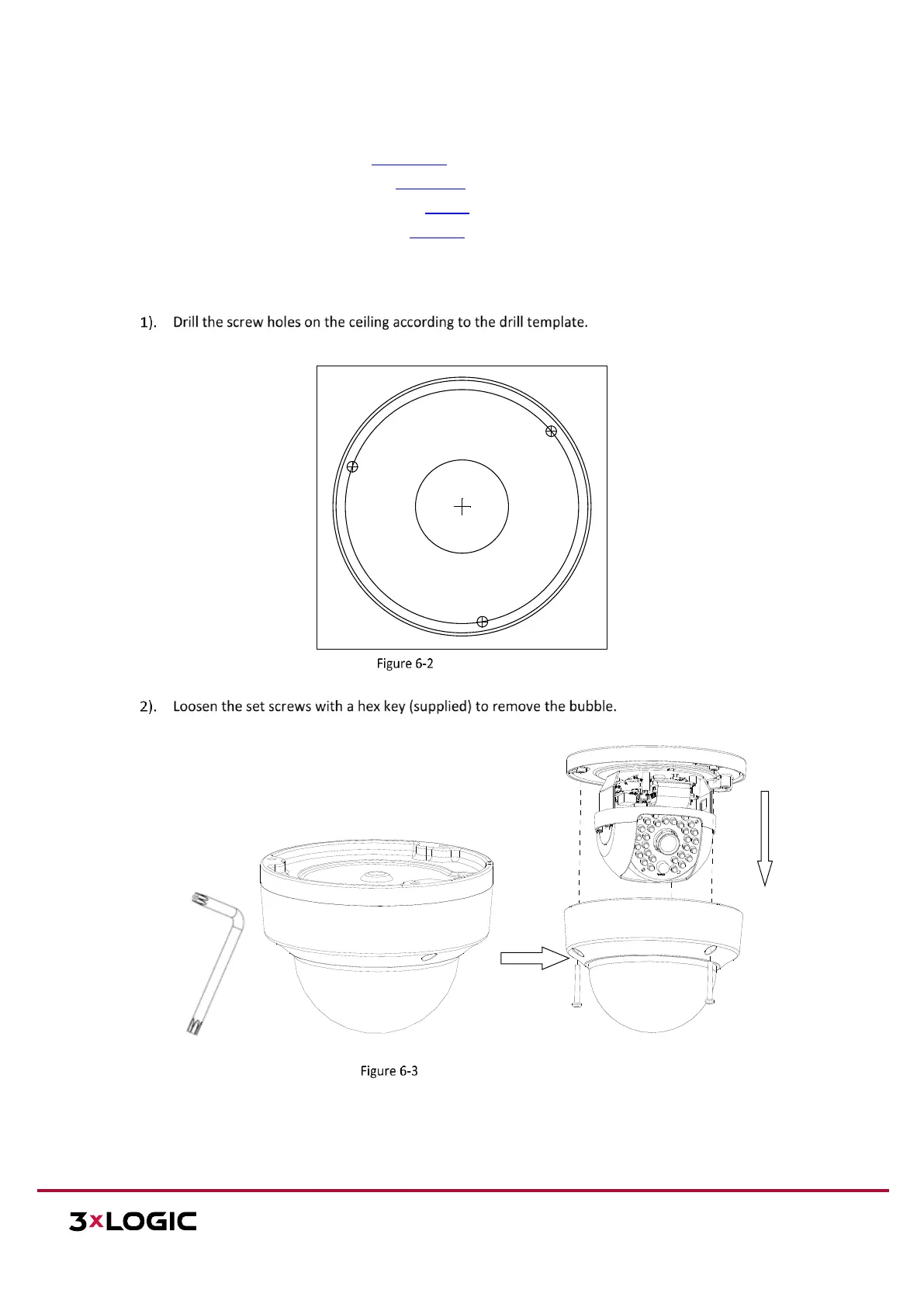

INSTALLATION — CEILING MOUNT
Steps:
Drill Template
Remove the Bubble
Drill Template
Hole A: for cables routed through the ceiling
screw hole 1: for Mounting Base
1
1
1
A
