6 Outdoor Dome Camera Installation
6.1 VX-3S28-OD-I-3, VX-SMBK-D
CAMERA DESCRIPTION

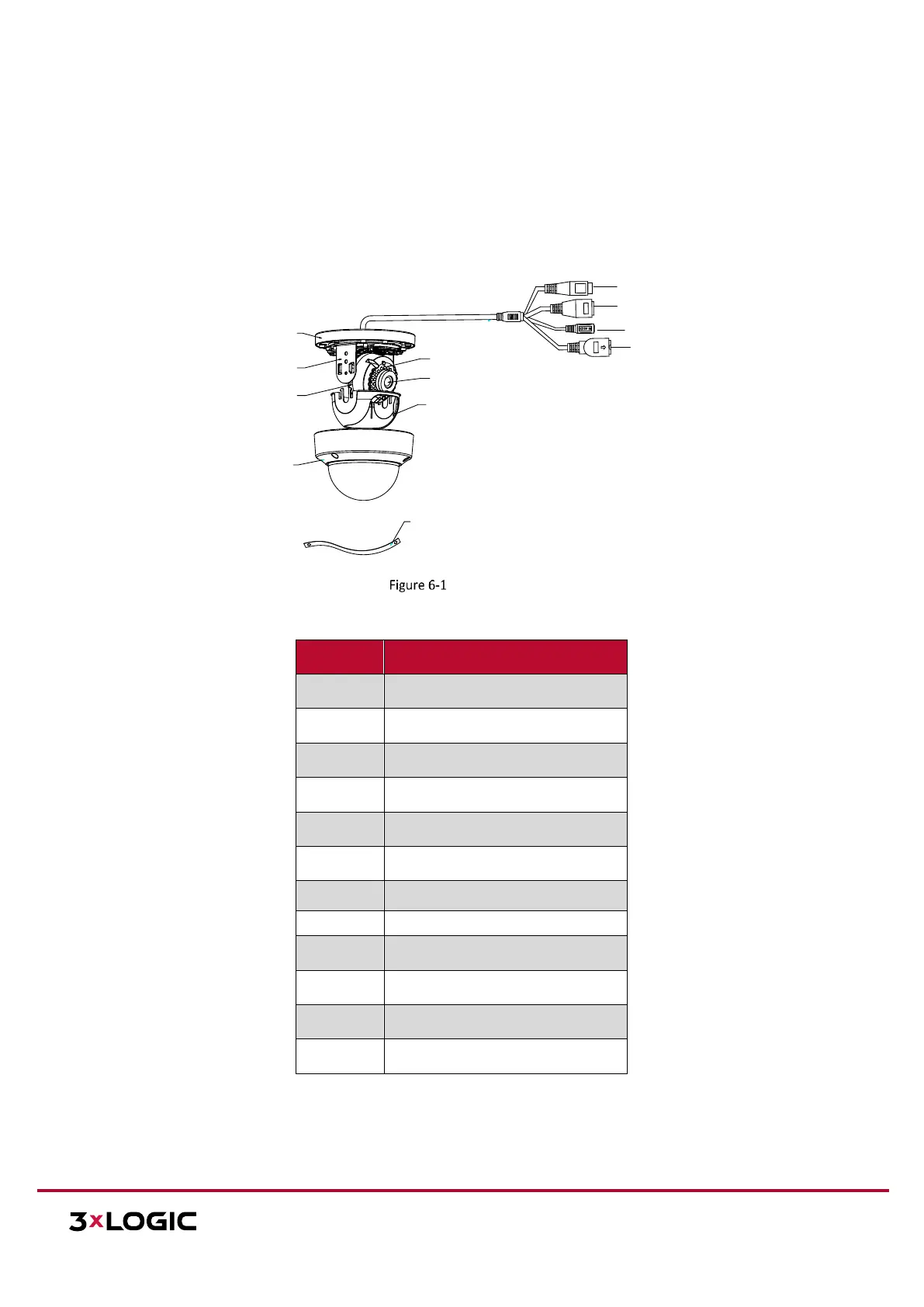

There are two types of camera appearance for this series of camera according to the different models.
5
1
2
3
4
9
6
7
8
10
11
12
Overview
Number
Description
1
Mounting Base
2
Horizontal Stand
3
Vertical Stand
4
Bubble
5
Network Interface
6
Power Interface
7
IR LED
8
Lens
9
Black Liner
10
Safety Rope
11
Audio Interface
12
Alarm Interface
NOTE: Press and hold RESET for 10s when the camera is powering on or rebooting to restore the default
settings, including the user name, password, IP address, port No., etc.
