6.2 VX-2M-OD2-RIAH, VX-3M-OD2-RIAWD
CAMERA DESCRIPTION

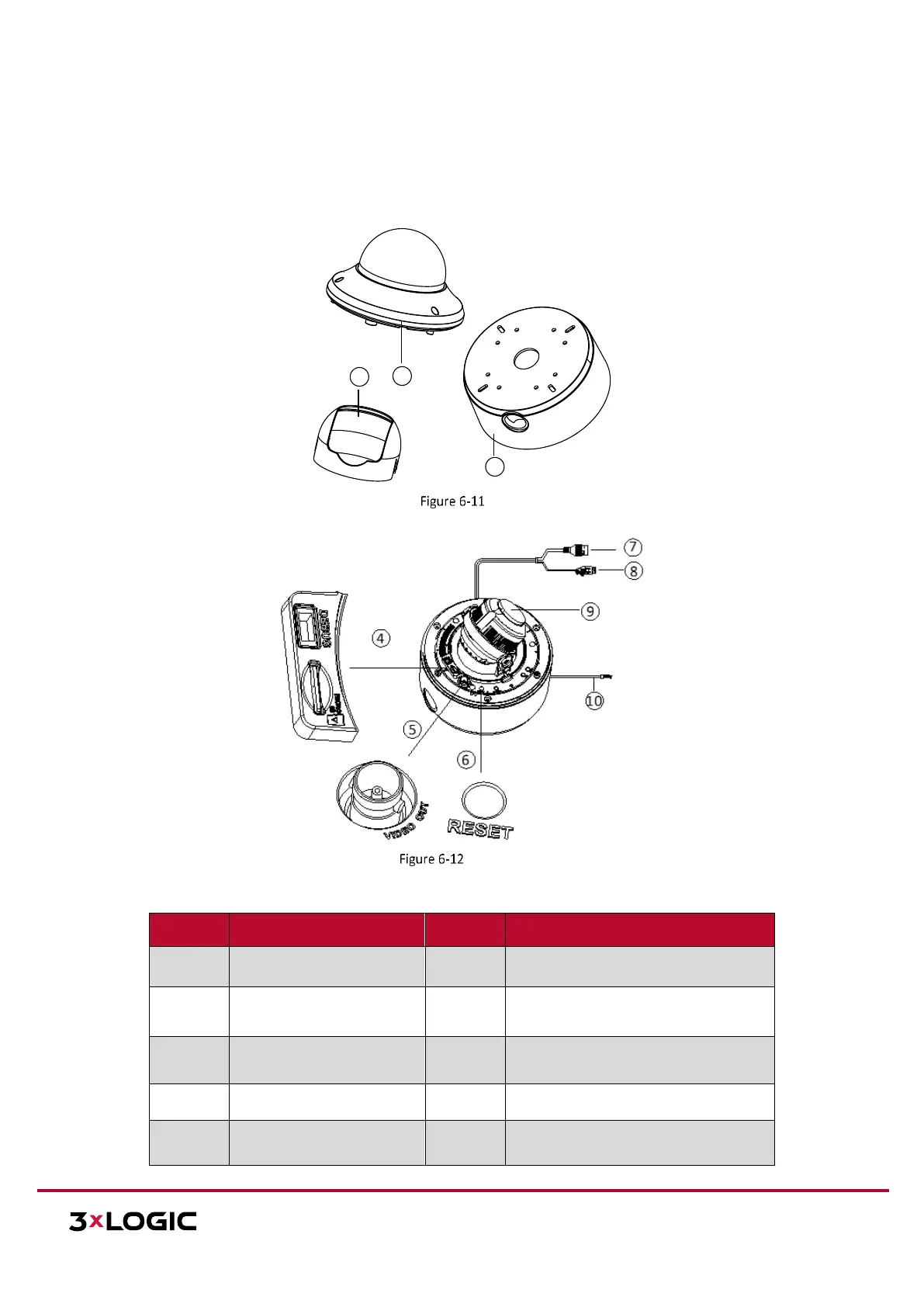

The overview of the outdoor dome camera is shown below:
Overview (1)
Overview (2)
Number
Description
Number
Description
1
Black Liner
6
Reset
2
Bubble
7
LAN(PoE) 10/100M Self-adaptive
Ethernet Interface
3
Mounting Base
8
Power Interface (DC 12v)
4
SD Card Slot
9
Lens
5
Video Out
10
Audio and Alarm Cables
