3xLogic VX-3M-F-AWD

Installation Manual v3.1 | VISIX S-Series Network Camera
12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
74
AVAILABLE MOUNTS
 Universal Corner Mount (3xLOGIC Product #: VX-CM)
 Universal Pole Mount (3xLOGIC Product #: VX-POLE)
These cameras have a built-in mount for wall and ceiling mount applications.

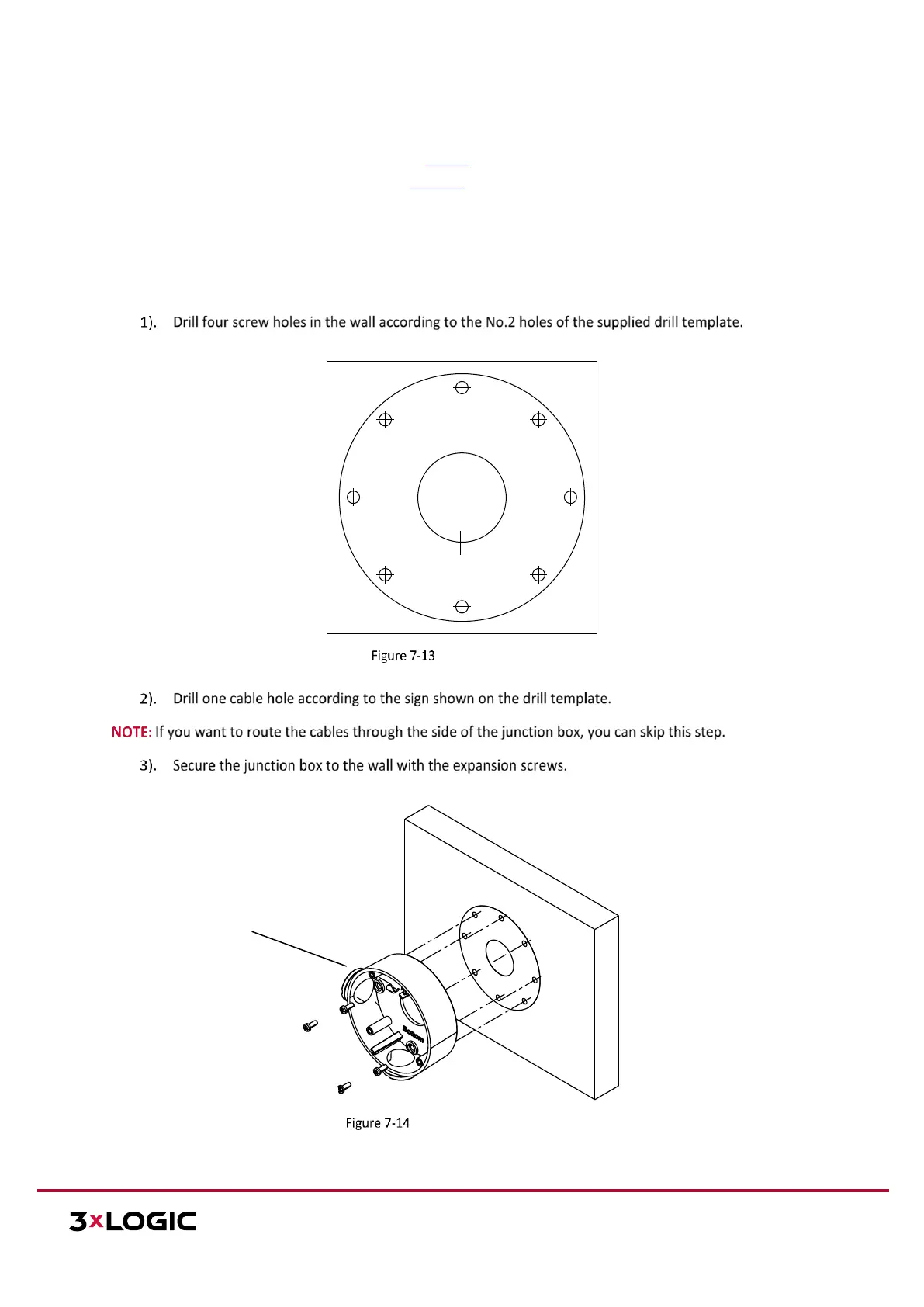

INSTALLATION — CEILING/WALL MOUNT
Steps:
Drill Template
Install the Junction Box
Cable Hole
1
1
1
1
2
2
2
2
Junction Box
