Assemble the Camera

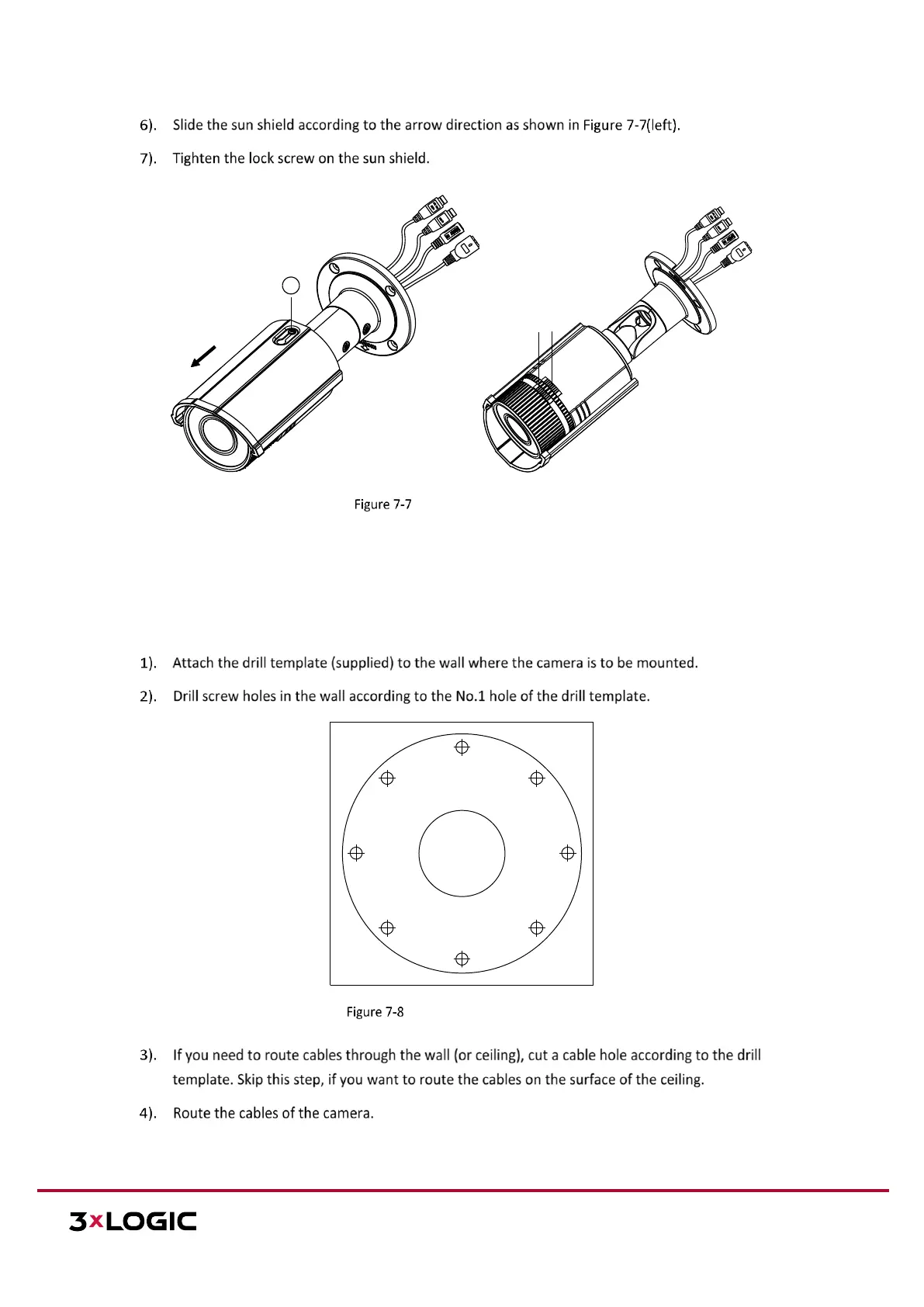

NOTE: For water-proofing, please align the rotating label on the front cover with that on the camera when you
rotate the front cover clockwise. Refer to Figure 7-7 , above (right).
INSTALLATION — WALL MOUNT
Steps:
Drilling Holes in the Wall
1
Rotating Label
Ceiling Mounting
1
1
1
1
2
2
2
2
1:Screw Hole for
Bracket
2:Screw Hole for
Mounting Base
