INSTALLATION — PENDANT MOUNT
Steps:
NOTE: The matched pendant bracket model is VX-PM-MD, and you need to purchases it separately if ceiling
bracket mounting is adopted.

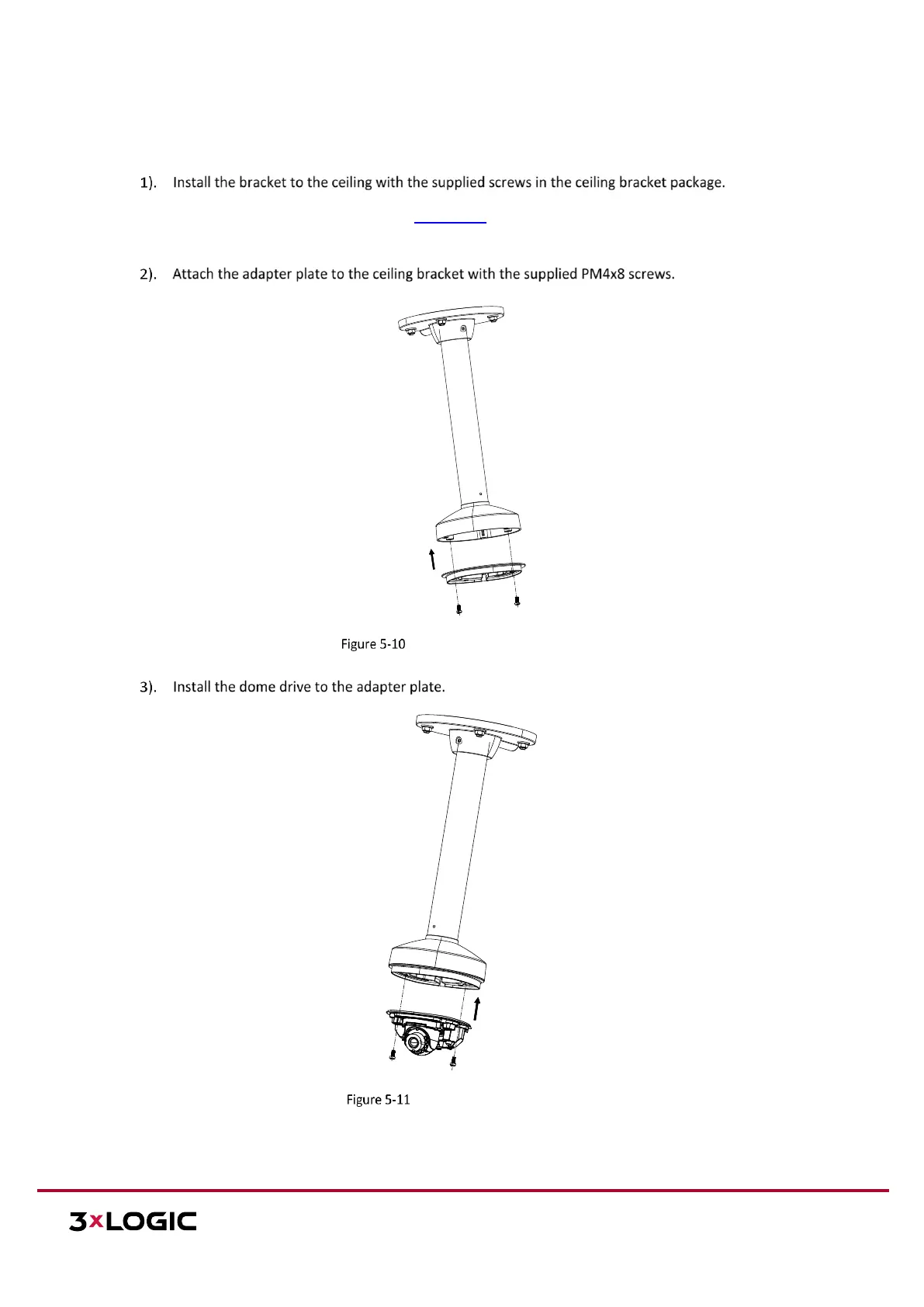

Attach the Adapter Plate
Attach the Dome Drive
