15

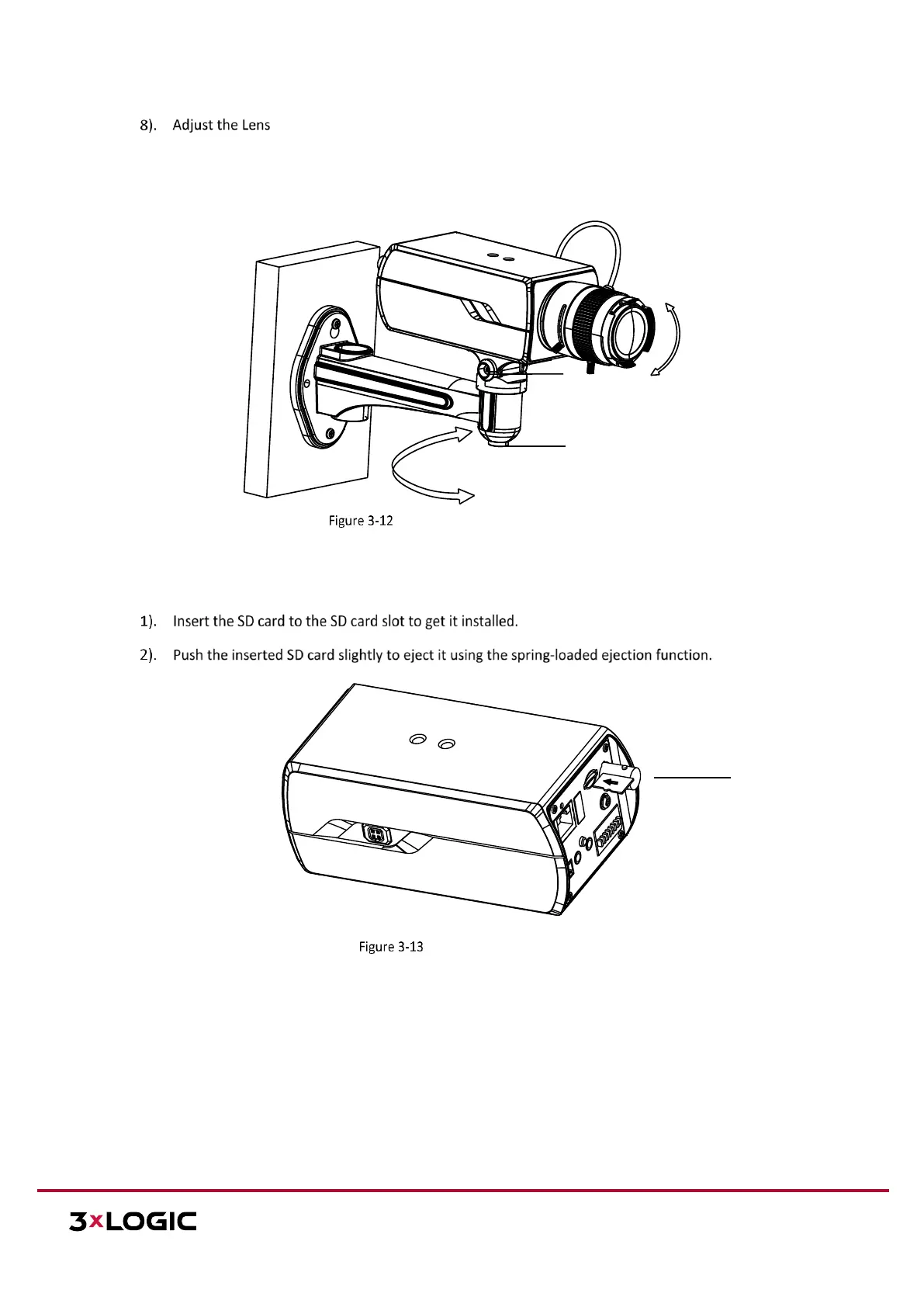

a. Connect the VIDEO OUT interface of the camera to the debugging monitor.
b. Adjust the focus lever to obtain the desired image on the monitor.
Adjust the Surveillance Angle
INSTALLATION — MICRO SD CARD
Steps:
Install the SD Card
Tilt Adjust Nut
Pan Adjust Nut
SD Card
