Installation Manual v3.1 | VISIX S-Series Network Camera

12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC

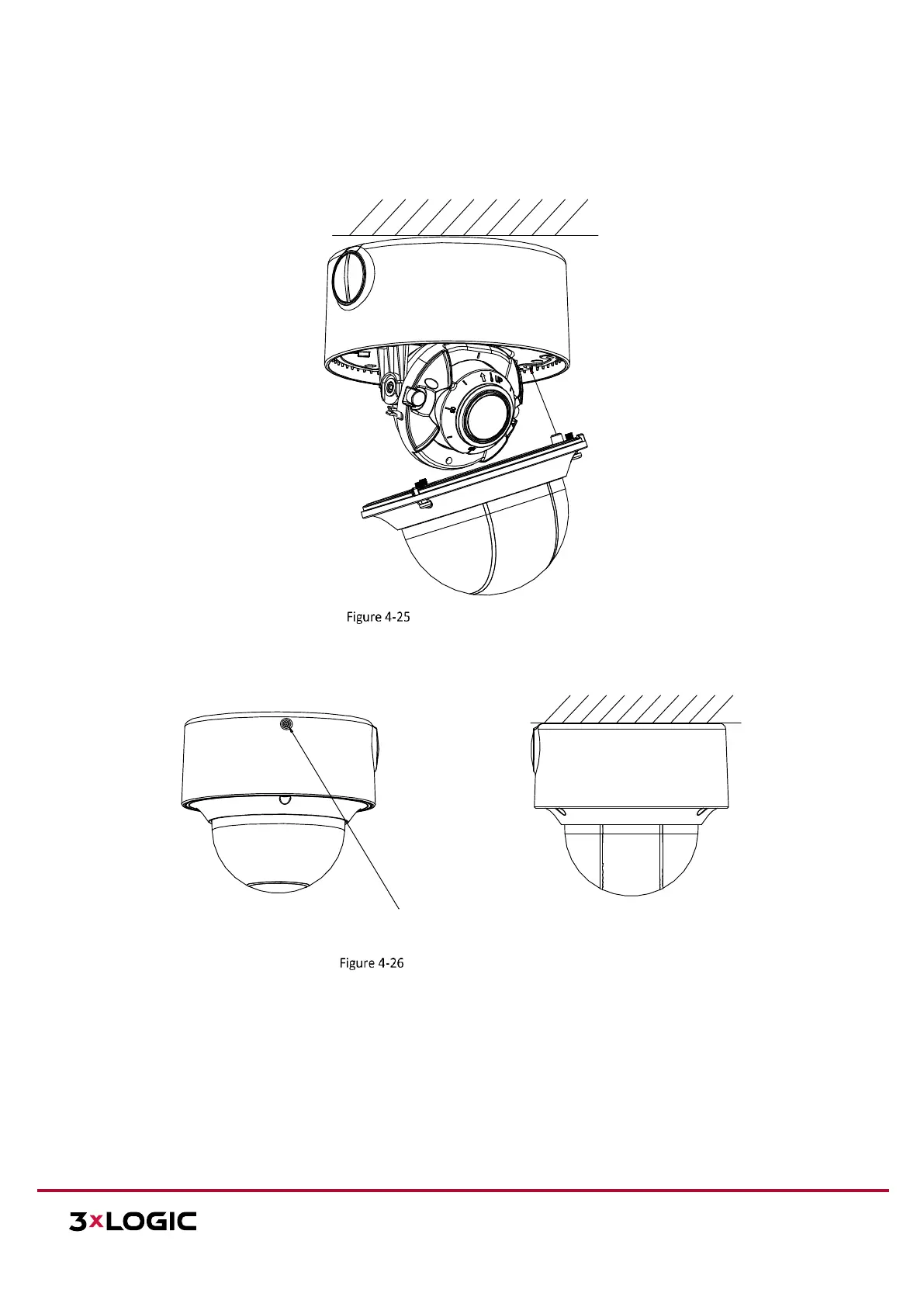

8. Attach the dome cover to the camera body. Fix it with screwdriver to get tightened as shown in the figures

below.

Install the Dome Cover

9. Tighten the lock screw to complete the installation.

Lock Screw

Complete the Installation

INSTALLATION - WALL MOUNTING

Before you start:

A wall mounting bracket is not included in package. If you choose this mounting type, you have to prepare a

bracket first. The wall mounting bracket shown below is only for demonstration.
