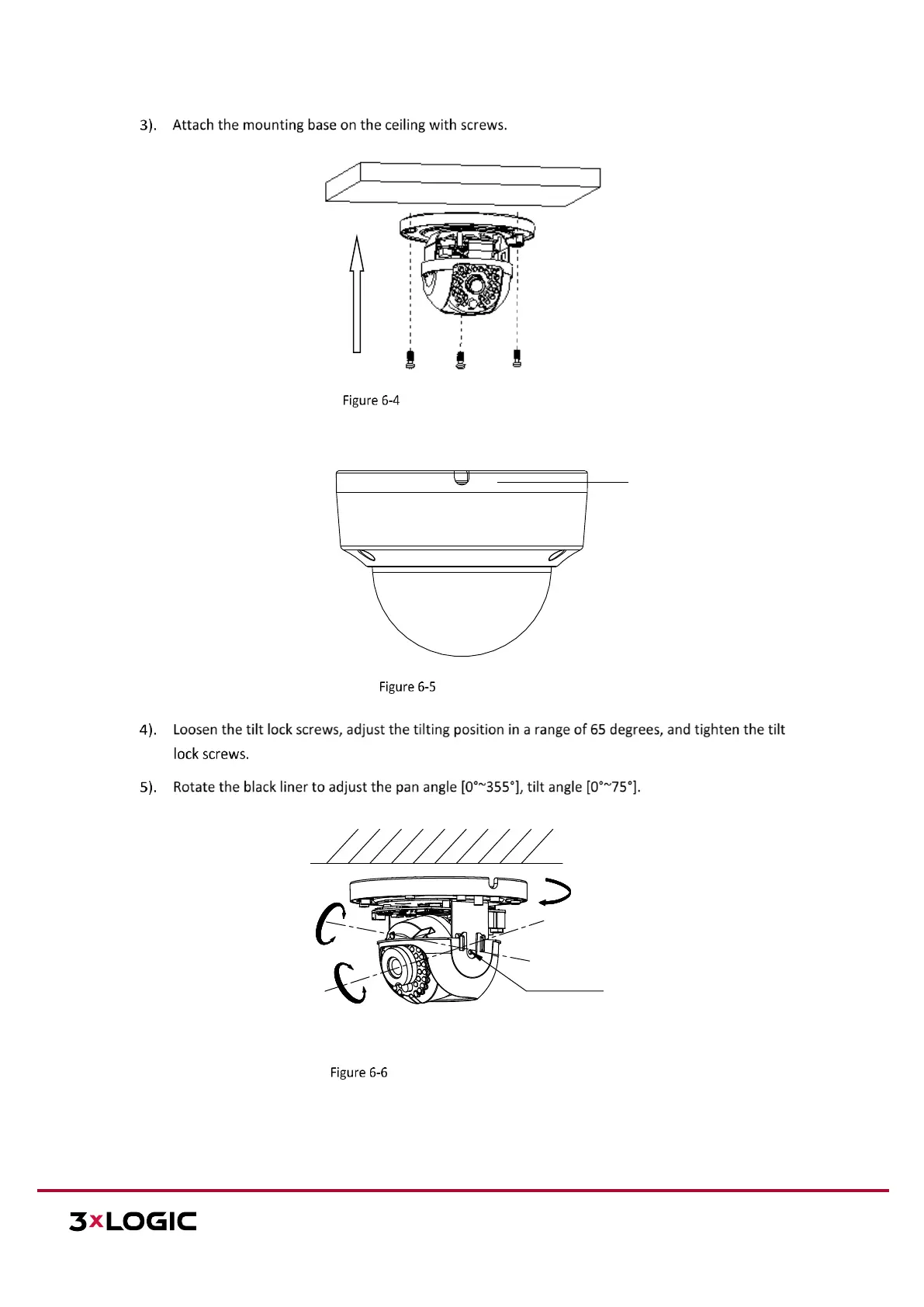

Attach the Mounting Base
NOTE: If required, you can route cables through the side opening on the side of the mounting base.
Side Opening
Tilt Adjust
Screw
0°~355°
0°~355°
0°~75°
Surveillance Angle Adjustment
NOTE: As the lens has already been factory adjusted to the best image, you just need to adjust the panning
position and tilting position to get the desired surveillance angle.
Side Opening
