3xLogic VX-3M-F-AWD

Installation Manual v3.1 | VISIX S-Series Network Camera
12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
38

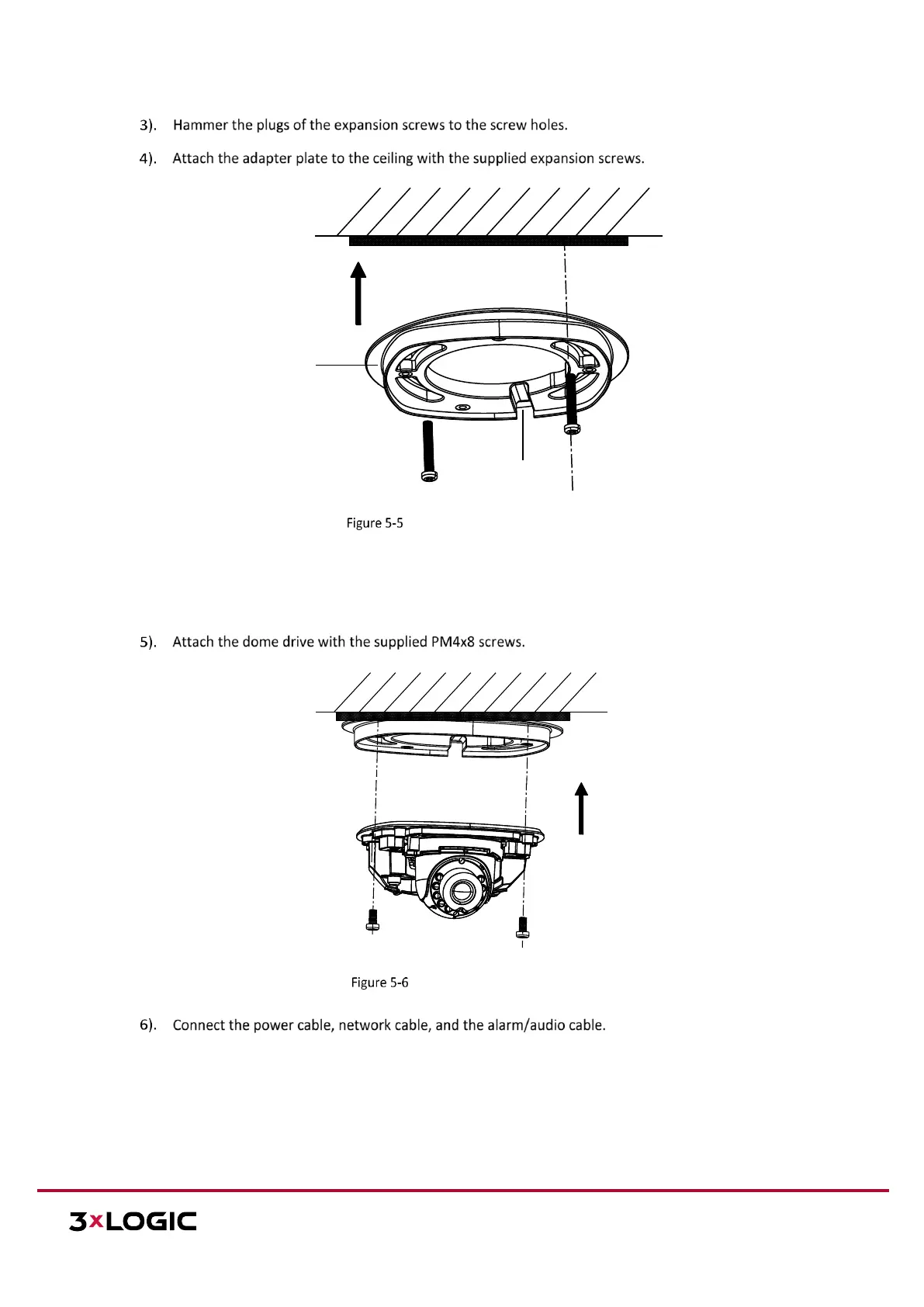

Attach the Adapter Plate
NOTE: If the supplied drill template is type II drill template, you can skip step 3 and go straight to step 4.
Attach the Dome Drive
NOTE: Use pliers to remove the removable part and route the cables via side outlet (as shown in Figure 5-7) if
no cable hole is drilled in step 1, and connect the corresponding cables.
Adapter Plate
Side Outlet
