3xLogic VX-3M-F-AWD

Installation Manual v3.1 | VISIX S-Series Network Camera
12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
60

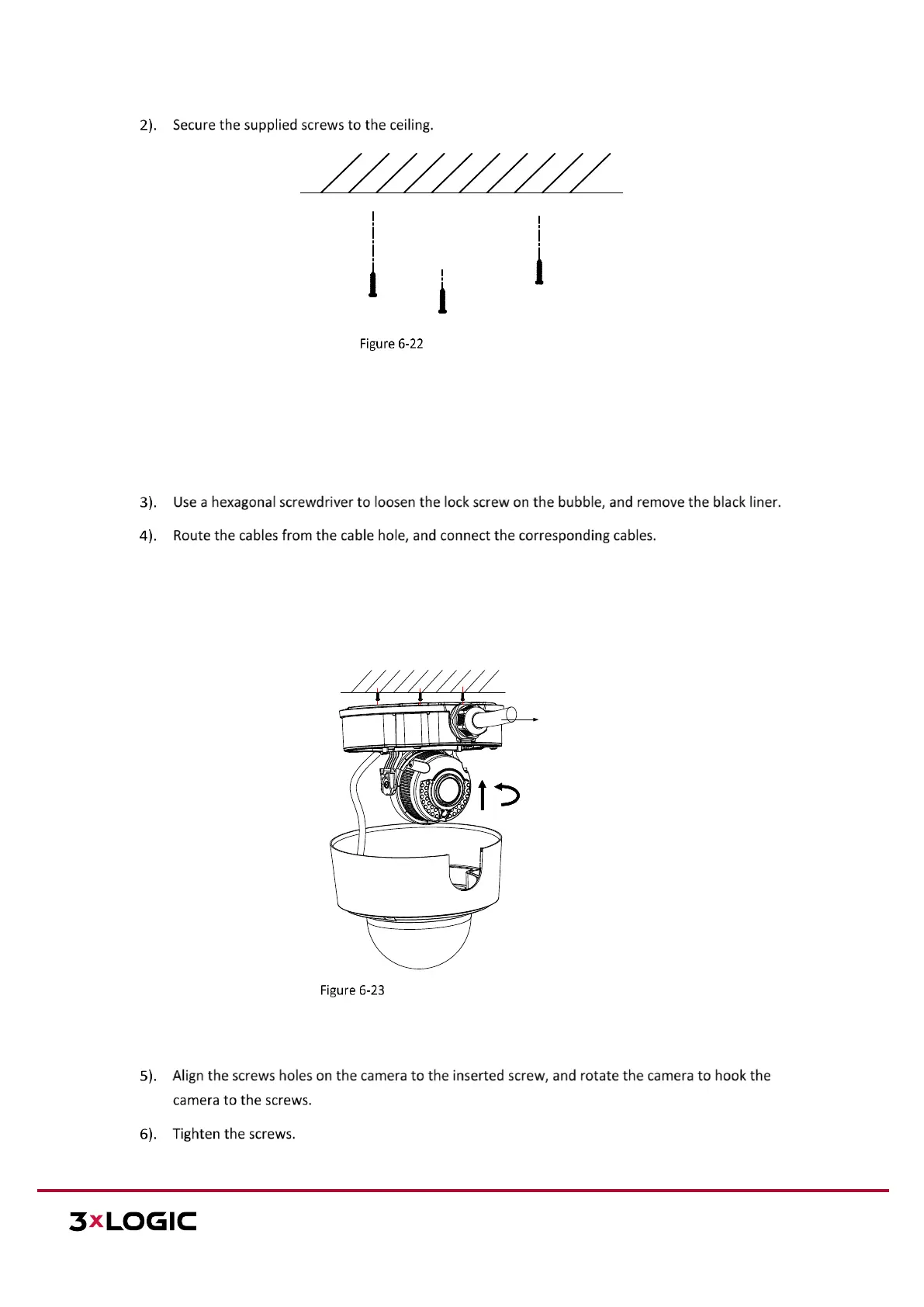

Secure the Screws
NOTE: Do not secure the screws into the ceiling completely. It is recommended you secure half of a screw into
the ceiling, so as to hook the camera to the screws.
NOTE: You can select to route the cables from the side outlet instead of the cable hole in the ceiling. See
Figure below.
Side Outlet
Route the Cables via Side Outlet
